5.3 Fan board
Part number: A3C40092053

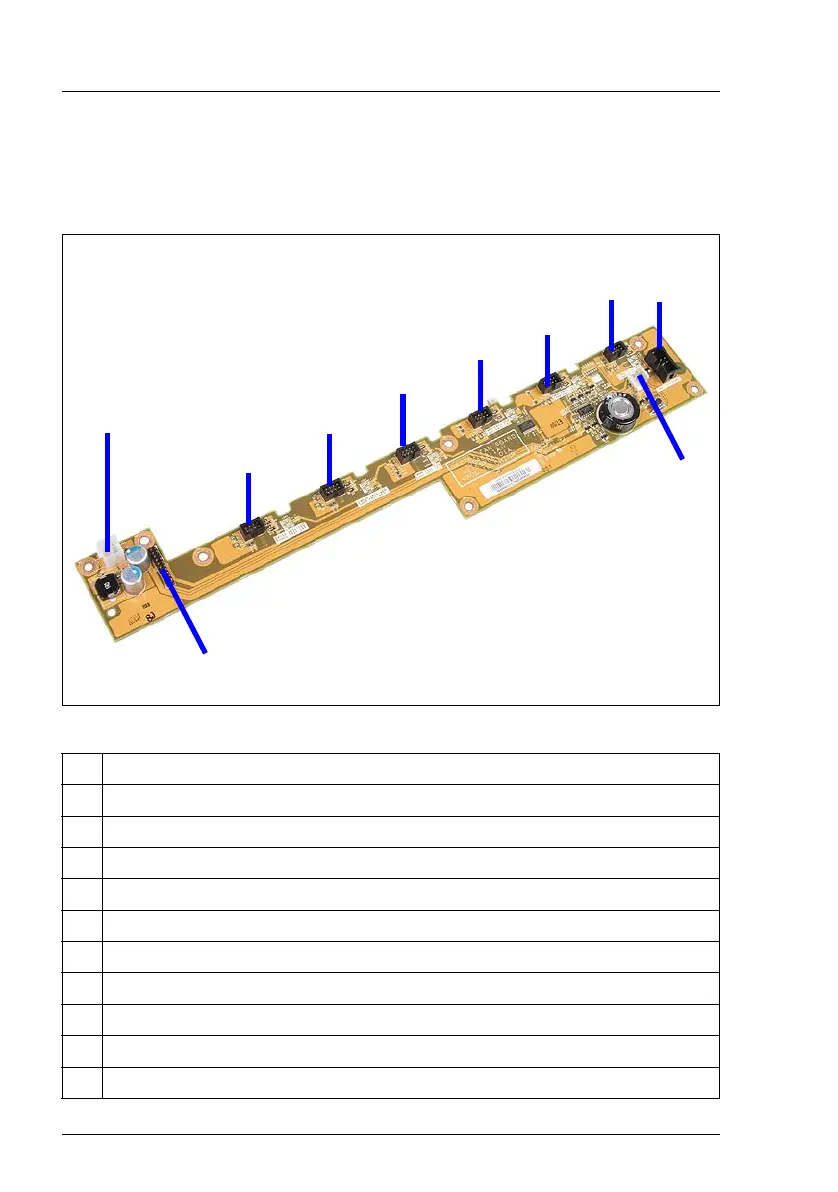

Figure 18: Fan board
# Connection
1 LSP/LSD
2 System fan 1/2
3 System fan 3/4
4 System fan 5/6
5 System fan 7/8
6 System fan 9/10
7 System fan 11/12
8 Auxiliary power supply for the fan board
9 Fan board cable
10 IDE cable for DVD drive
1
2
3
6
8
4
5
7
9
10
