RX200 S4 Service Supplement 17
4 Replacement routines
V CAUTION!
When handling systems and boards, make sure you observe the safety
notes in the chapter “Safety notes” on page 11ff.
4.1 Preparation
Ê Exit all applications and shut down the server correctly.
Ê If your operating system has not switched off the server, press the On/Off
button.
Ê Unplug the power plugs.
4.1.1 Pulling out / removing the server

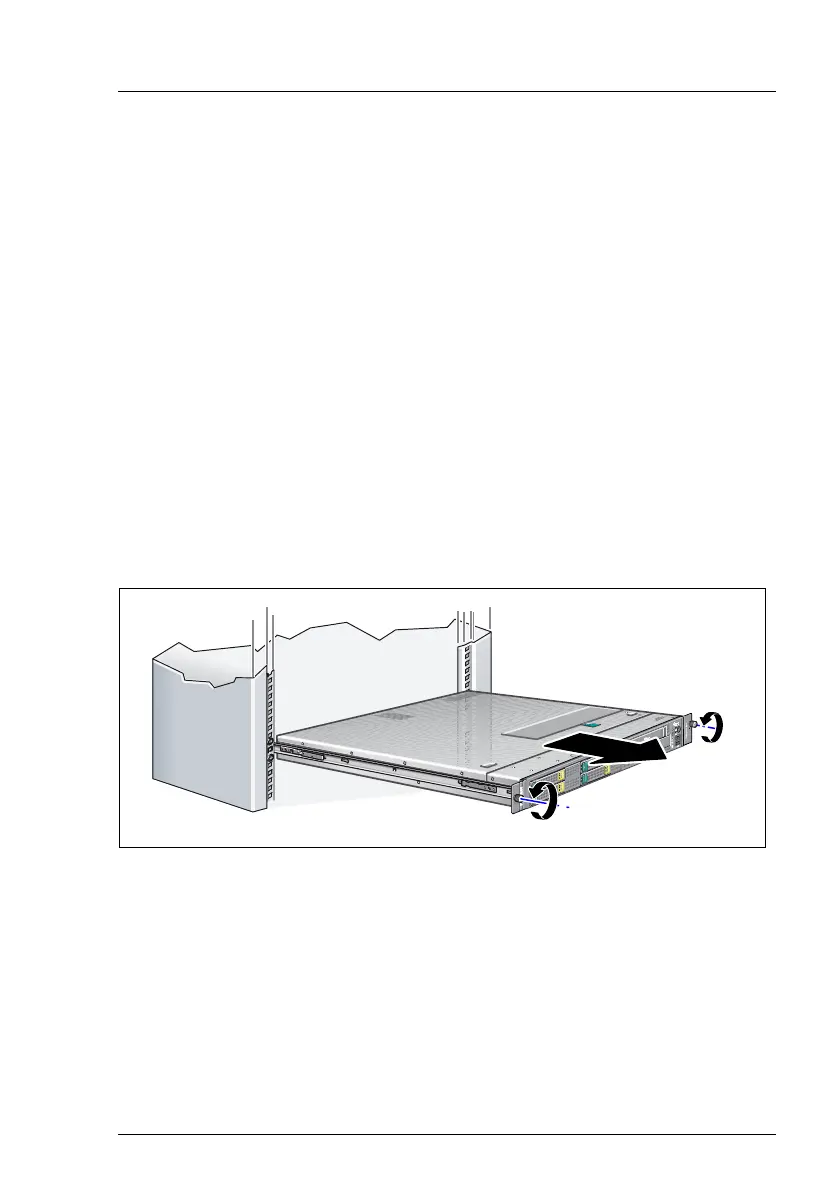

Figure 2: Removing the server
Ê Undo the knurled screws (1) and pull the server carefully out of the rack (2)
as far as it will go.
