60 Options Guide RX200 S6
Expansion cards and iBBU

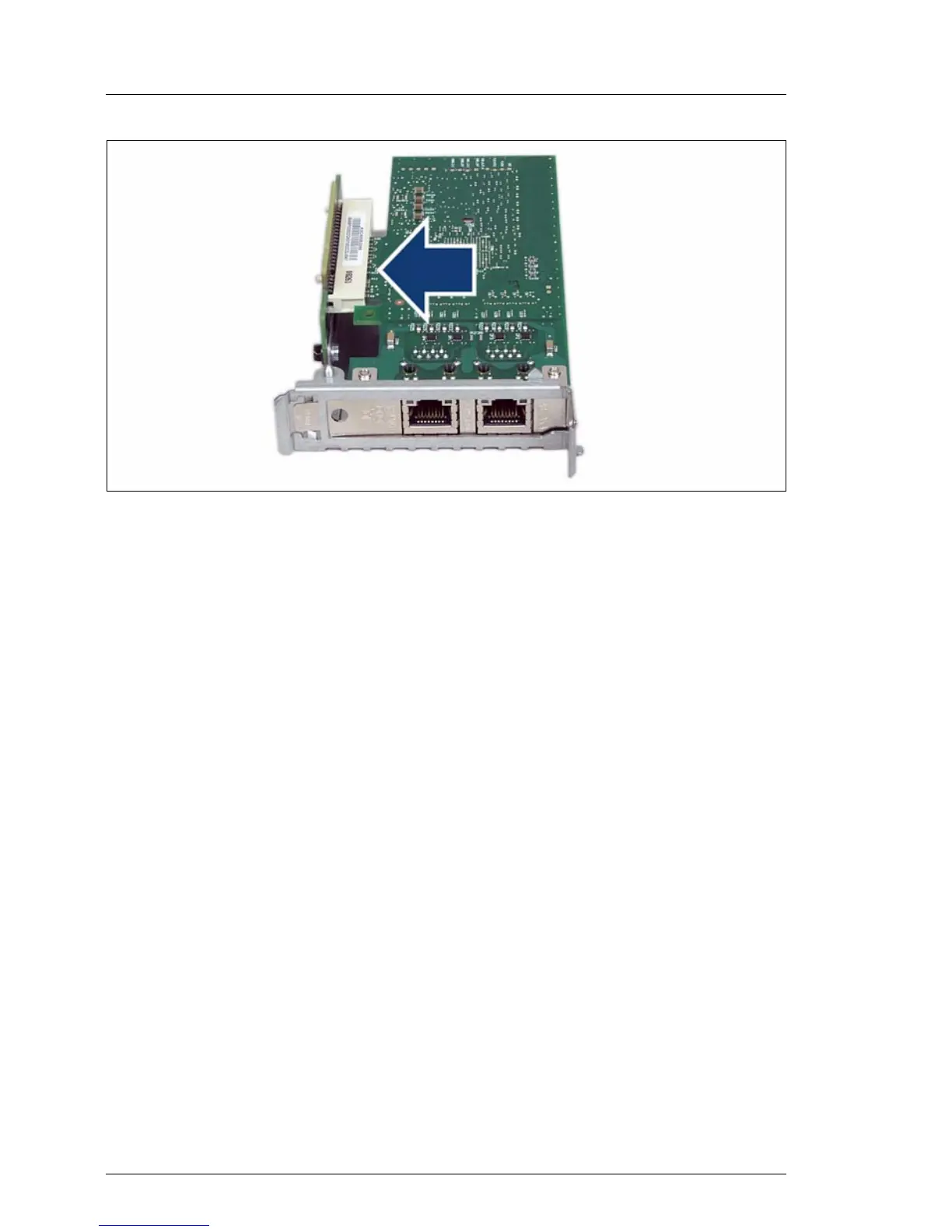

Figure 30: Riser card holder #2 equipped with an expansion card
Ê Insert the expansion card into the riser card of the same height.
I Make sure that the rear slot cover is positioned in the designated
groove.
Ê If necessary, connect the cables to the expansion card and the other
components.
Installing an expansion card in riser card #3
See section "Installing a modular RAID controller" on page 61.
Reinstalling the riser card holder
Ê Position the riser card holder over the relevant slot on the system board.
Ê Carefully push the riser card holder into the slot by pressing on the green
points.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter "Completion" on page 73.
