72 Options Guide RX200 S6
Further options

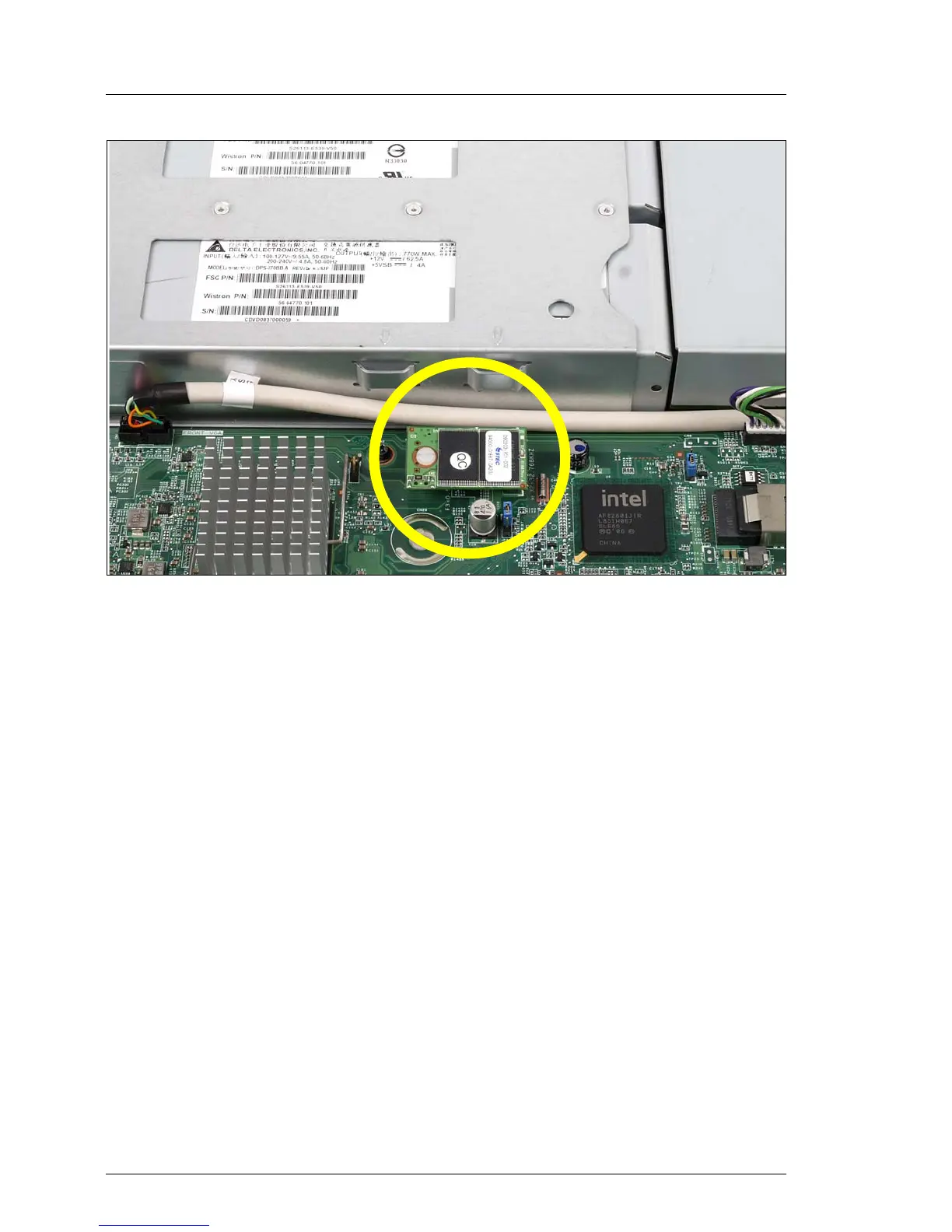

Figure 42: UFM - Position on the system board
Ê Connect the USB Flash Module to the system board. The spacer must click
into the hole on the system board.
Ê Position the riser card holder over the relevant slot on the system board.
Ê Carefully push the riser card holder into the slot by pressing on the green
points.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter "Completion" on page 73.
