50 Operating Manual RX200 S6
Hardware installation
Removing the outer telescopic rail

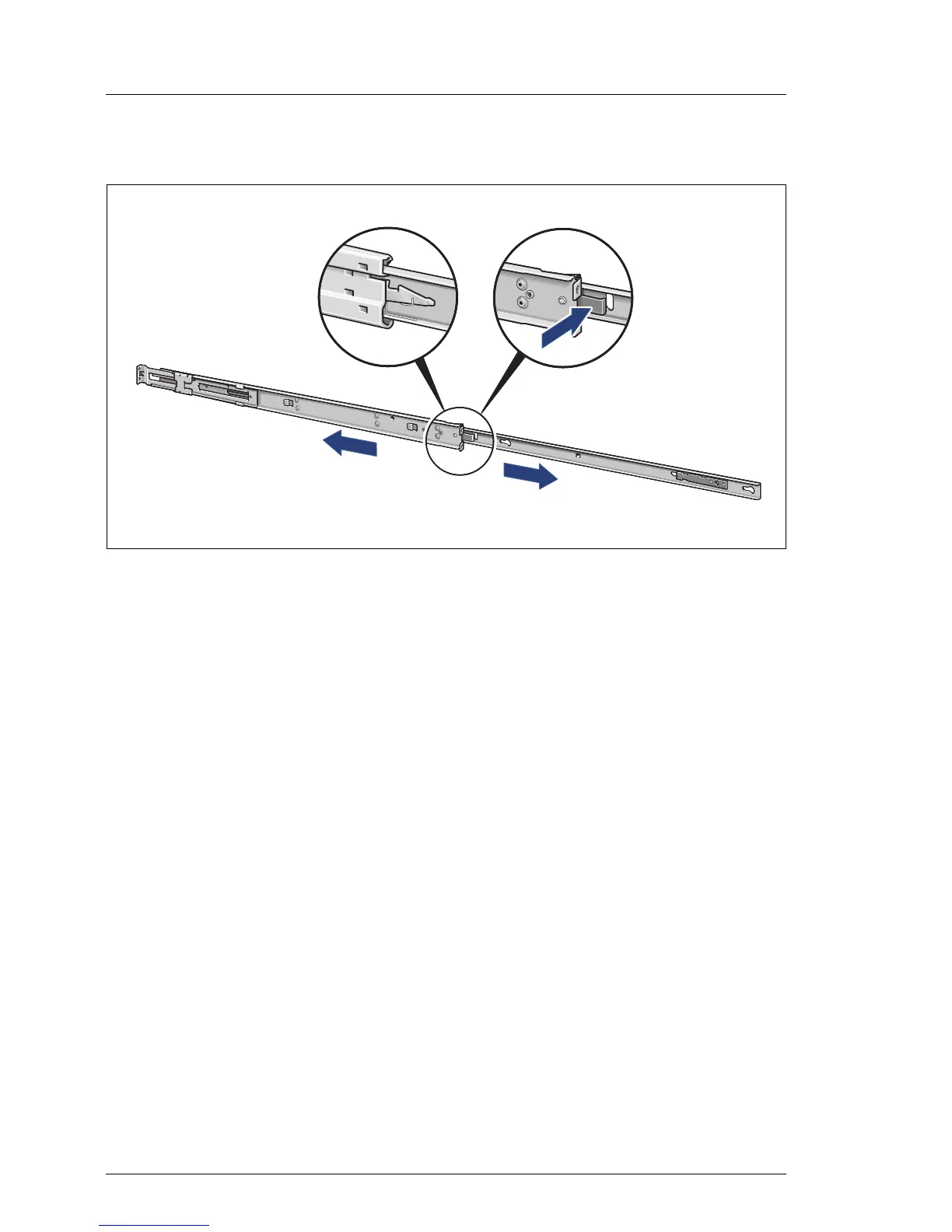

Figure 4: Removing the outer telescopic rail
Ê Extend the telescopic rail fully (1).
Ê Unlock the outer telescopic rail and remove it.
With fully-extendable rails (a): Press the locking lever to release the server
rail.
With partially extendable rails (b): Press the release spring to release the
server rail.
Ê Repeat the steps with the second telescopic rail.
a
b
1
1
