RX200 S6 Operating Manual 51
Hardware installation
Installing the support systems

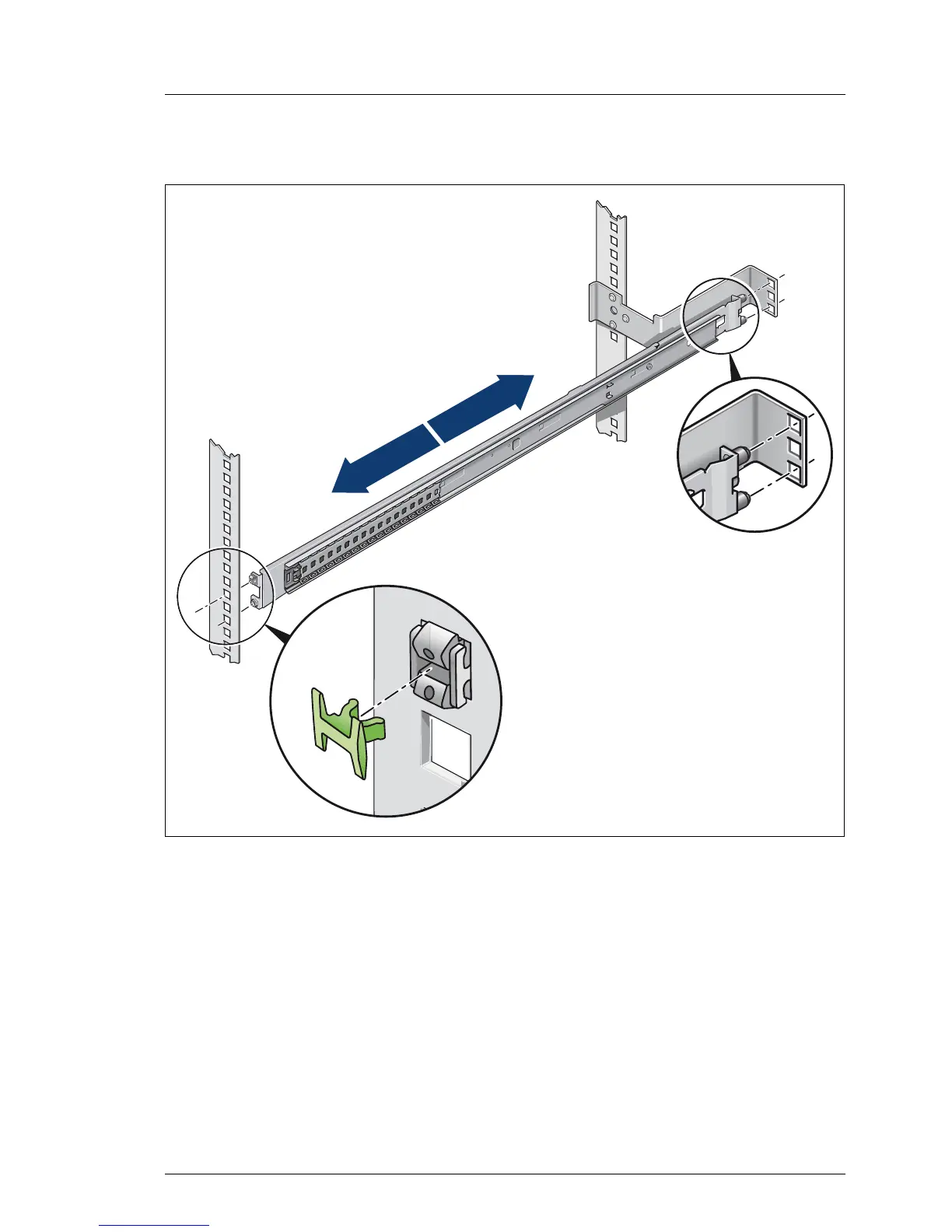

Figure 5: Fit the left support system in the PRIMECENTER/DataCenter rack
Ê Position the left support system in the support bracket (insert retaining bolts)
- see (1).
Ê Clamp the left-hand support system (2) between the front left support
upright and the support bracket by pressing the support system together,
positioning it on the front support upright and releasing it again. The support
system automatically adjusts to the rack depth.
I The support system no longer has to be fixed to the front support
upright because the easy lock engages and ensures a firm fit.
1
3
2
