Fujitsu PRIMERGY RX600 S6 - Front Panel Fan Board

60 Service Supplement RX600 S6
Appendix
5.1.6 Front panel fan board
Part number: SNP:A3C40113964

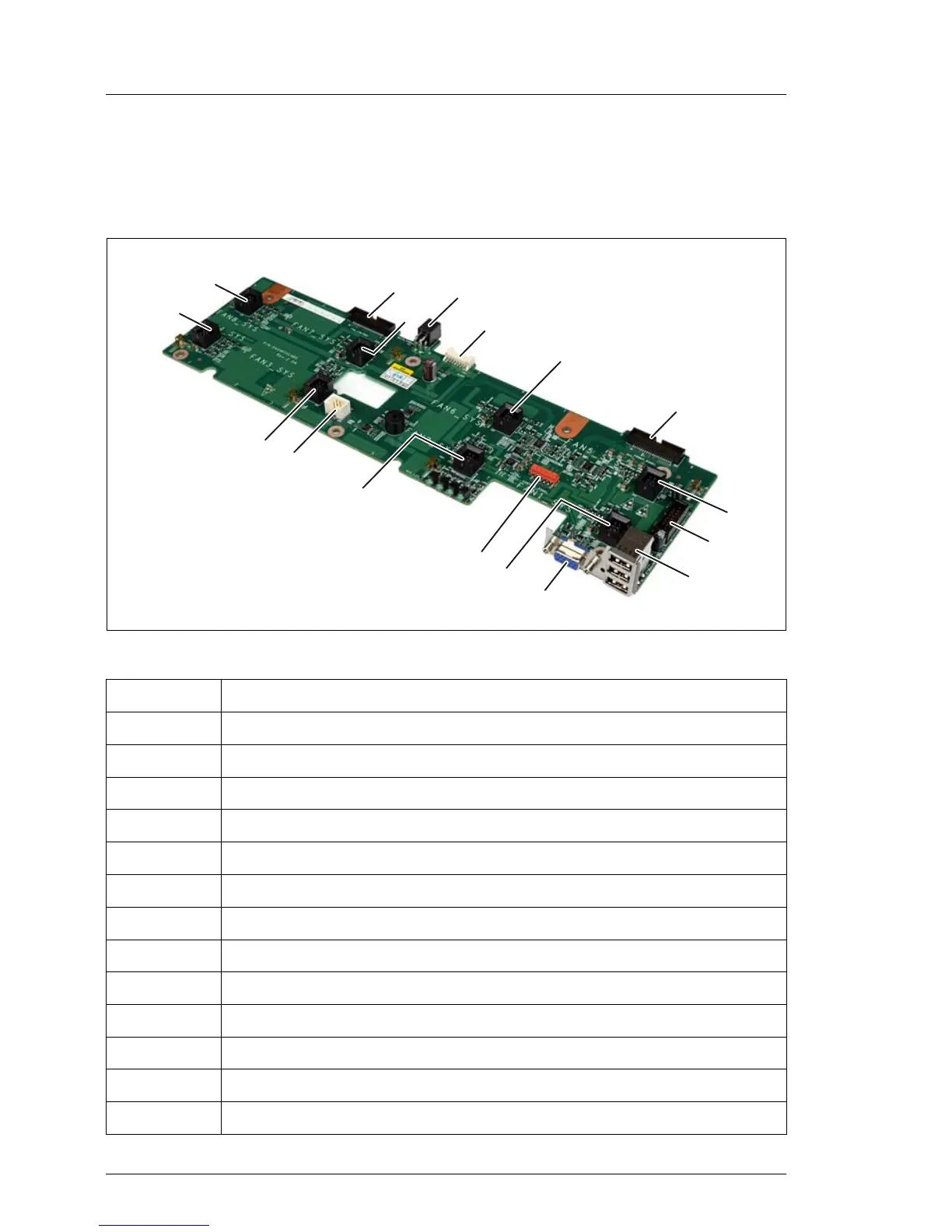

Figure 39: Front panel fan board
Connector Description
1 Connector fan control to system board
2 Connector power hot-swap fan #7
3 Connector fan power
4 Connector hot-swap backplane control
5 Connector power hot-swap fan #6
6 Connector front panel to system board
7 Connector power hot-swap fan #5
8 Connector USB to system board
9 Connector 3x USB
10 Connector VGA (frontside)
11 Connector power hot-swap fan #1
12 Connector control panel
13 Connector power hot-swap fan #2
3
4
5
6
7
8
9
10
11
13
14
12
15
16
17
2
1
