RX600 S6 Service Supplement 47
Replacement routines
4.12 Replacing the power distribution board
The power distribution board is located underneath the system board close to
the hot-swap backplane.
Removing the power distribution board
Ê Remove the power supply units (see the Operating Manual).
Ê Open the server as described in section "Opening the server" on page 21
Ê Remove the system board (see section "Replacing the system board" on
page 38).
Ê Remove all cable connections to the power distribution board.

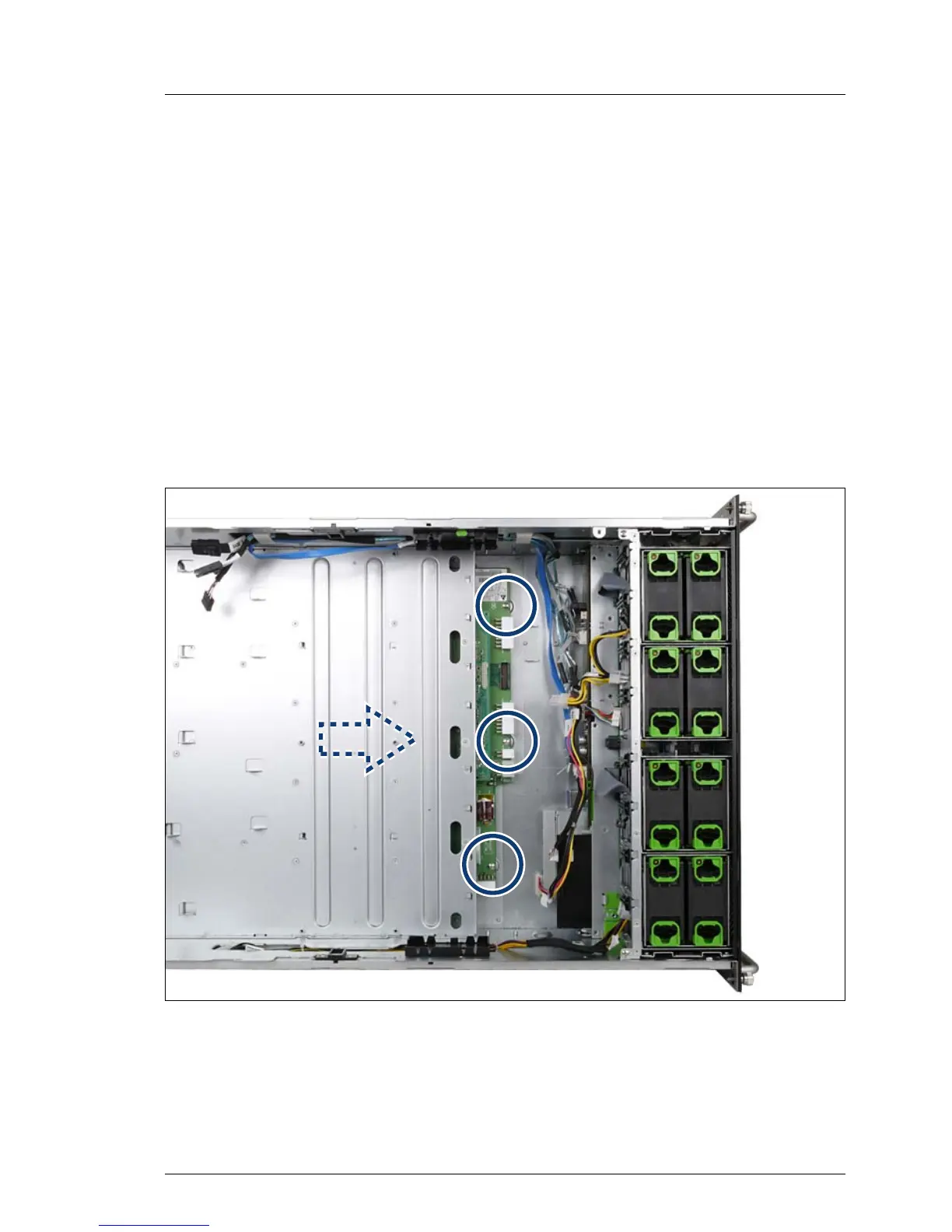

Figure 26: Removing the power distribution board
Ê Undo the three screws (see circles in figure above) of the power distribution
board.
