Fujitsu PRIMERGY TX200 S5

TX200 S5 Options Guide 53
Accessible drives Installing the multibay

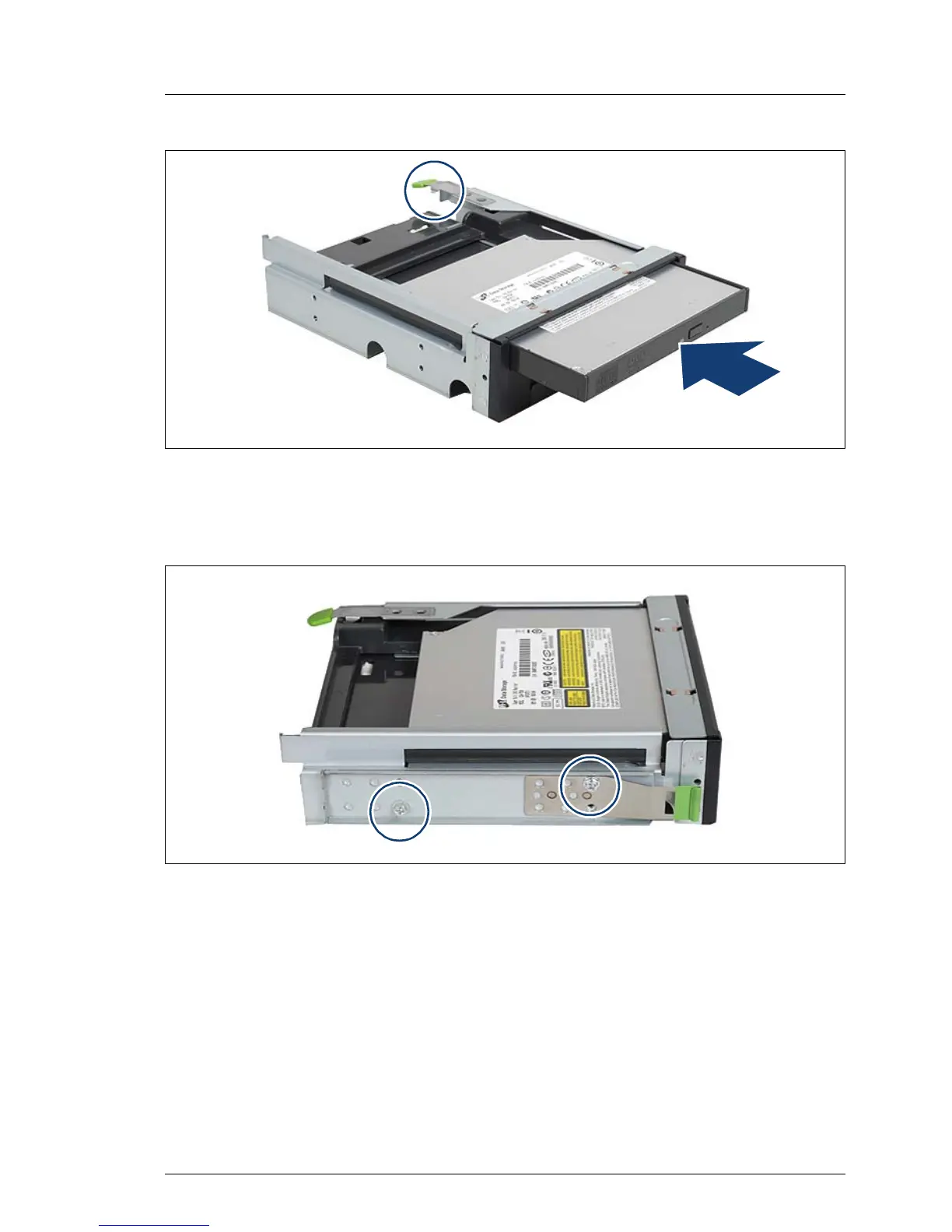

Figure 35: Sliding the slimline DVD in the multibay
Ê Slide the slimline DVD in the multibay from the front until it engages (see the
snap-in hook in the circle).
Figure 36: Attaching EasyClick rails to the multibay
Ê Screw the EasyClick rails onto either side using two M3 x 4.5 mm screws.
