Installing the multibay Accessible drives

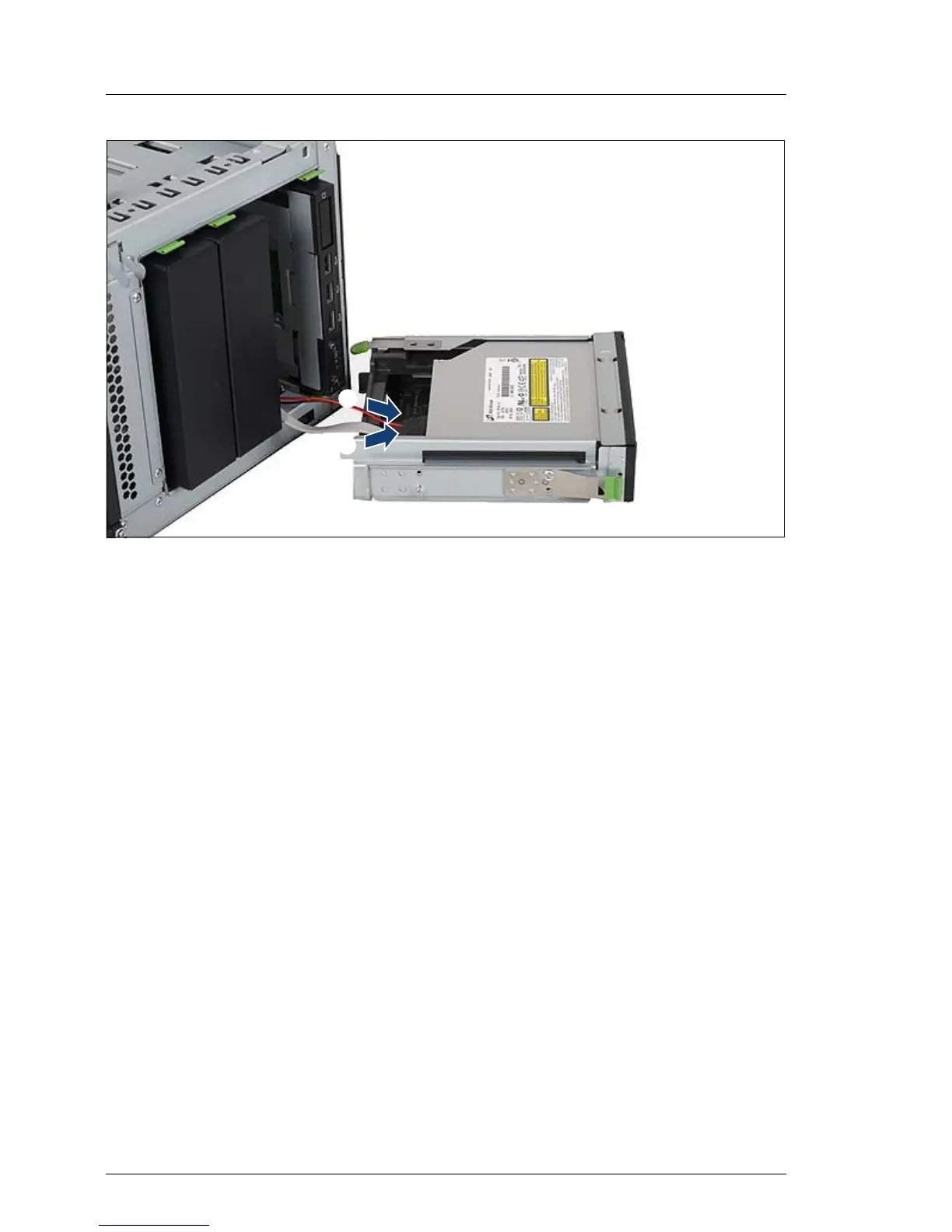

Figure 37: Routing the slimline DVD
I The DVD SATA cable (T26139-Y3928-V205) is already pre-mounted and
connected to the SATA5 port of the system board.
Ê Disconnect the DVD SATA cable from the system board port SATA5 in order
to move the cable.
Ê Pull the DVD SATA cable out of the bay towards the front.
Ê Pull the power cable (P19 plug) out of the bay towards the front.
Ê Connect the power cable to the slimline DVD.
Ê Connect the DVD SATA cable to the slimline DVD.
Ԙ
ԙ
