TX200 S5 Options Guide 55
Accessible drives Installing the multibay

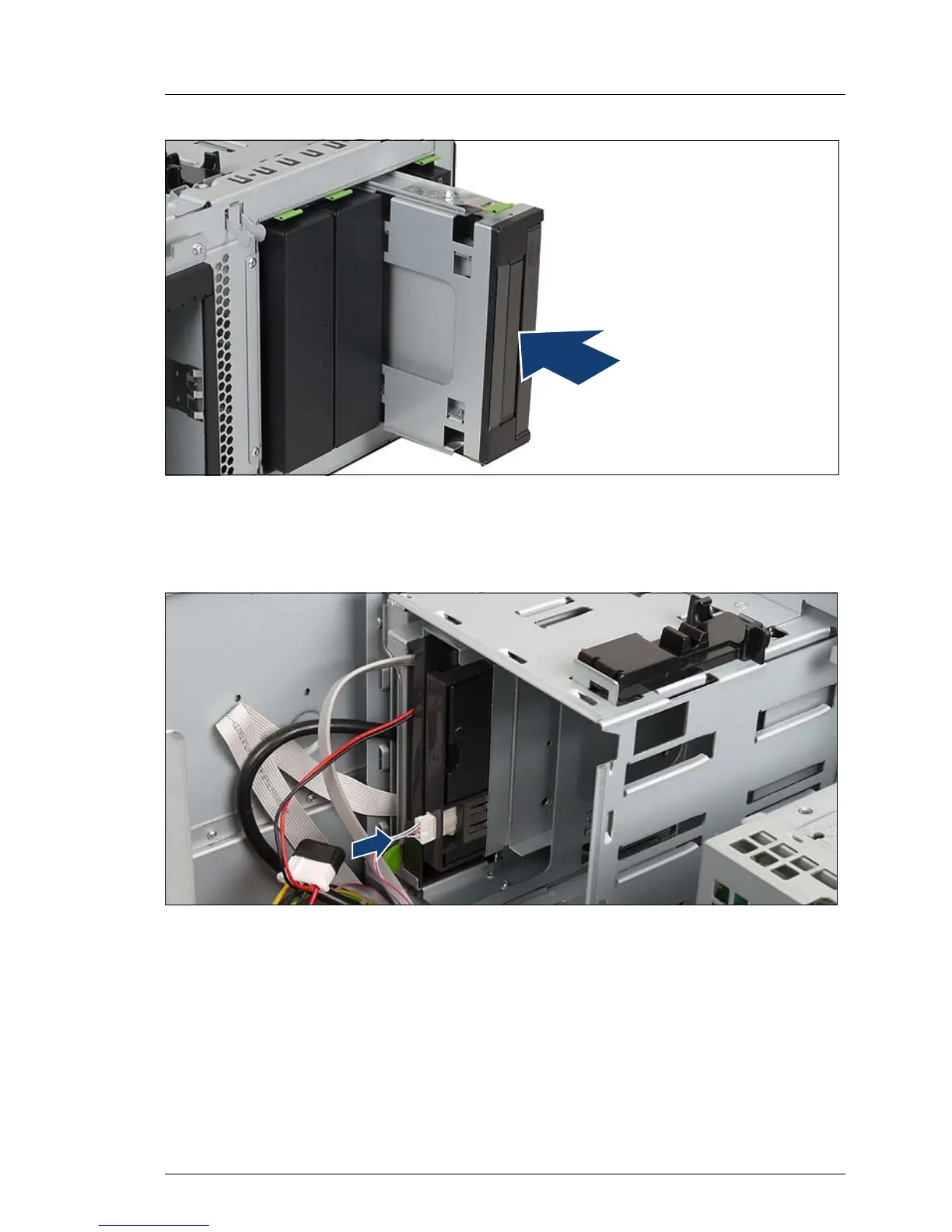

Figure 38: Installing the multibay
Ê Push the multibay fully into the top bay until the EasyClick rails lock in place.
Make sure that the cables do not become trapped.
Figure 39: Cabling the LSP/LSD
Ê Connect the small plug of the front panel cable to the LSP/LSD (see the
cabling plans in the Appendix).
Ê Reconnect the DVD SATA cable plug to the system board port SATA5.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter “Completion”.
