TX200 S5 Options Guide 57
Accessible drives Installing the hard disks extension box
3.5-inch HDD extension box

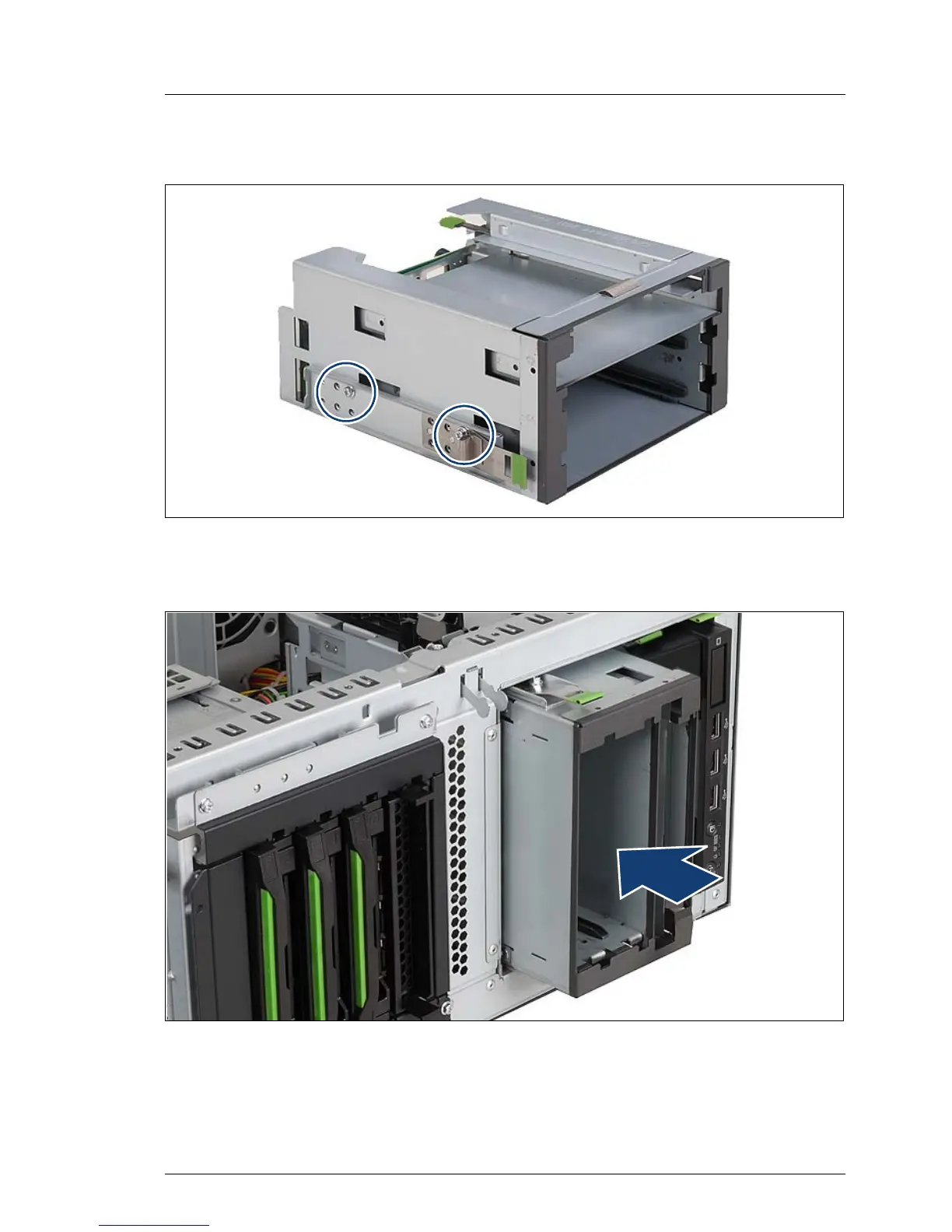

Figure 40: Attaching EasyClick rails to the 3.5-inch HDD extension box
Ê Screw the EasyClick rails onto either side using two M3 x 4.5 mm screws.
Figure 41: Installing the 3.5-inch HDD extension box
Ê Push the 3.5-inch HDD extension box fully into the two lower bays until the
EasyClick rails lock in place.
