58 Options Guide TX200 S5
Installing the hard disks extension box Accessible drives
If you want to install a slimline DVD:

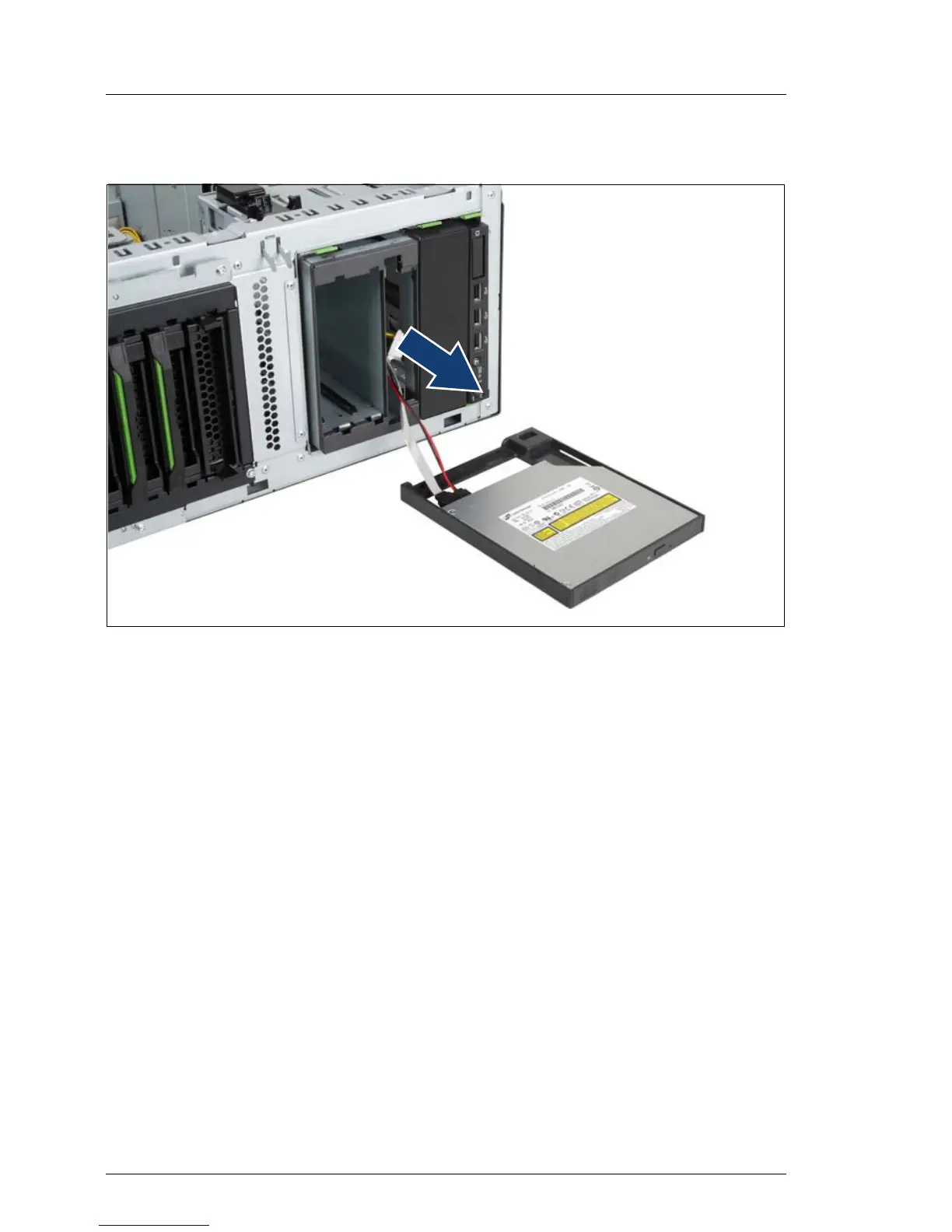

Figure 42: Installing a slimline DVD in the 3.5-inch HDD extension box
I The DVD SATA cable (T26139-Y3928-V205) is already pre-mounted and
connected to the SATA5 port of the system board.
Ê Disconnect the DVD SATA cable from the system board port SATA5 in order
to move the cable.
Ê Pull the DVD SATA cable out of the upper bay of the 3.5-inch HDD extension
box towards the front.
Ê Pull the power cable (P19 plug) cable out of the upper bay of the 3.5-inch
HDD extension box towards the front.
Ê Connect the power cable to the slimline DVD.
Ê Connect the DVD SATA cable to the slimline DVD.
Ê Slide the slimline DVD into the 3.5-inch HDD extension box from the front
until it engages. Make sure that the cables do not become trapped.
Ê Reconnect the DVD SATA cable plug to the system board port SATA5.
