62 Options Guide TX200 S5
Installing the hard disks extension box Accessible drives
2.5-inch HDD extension box

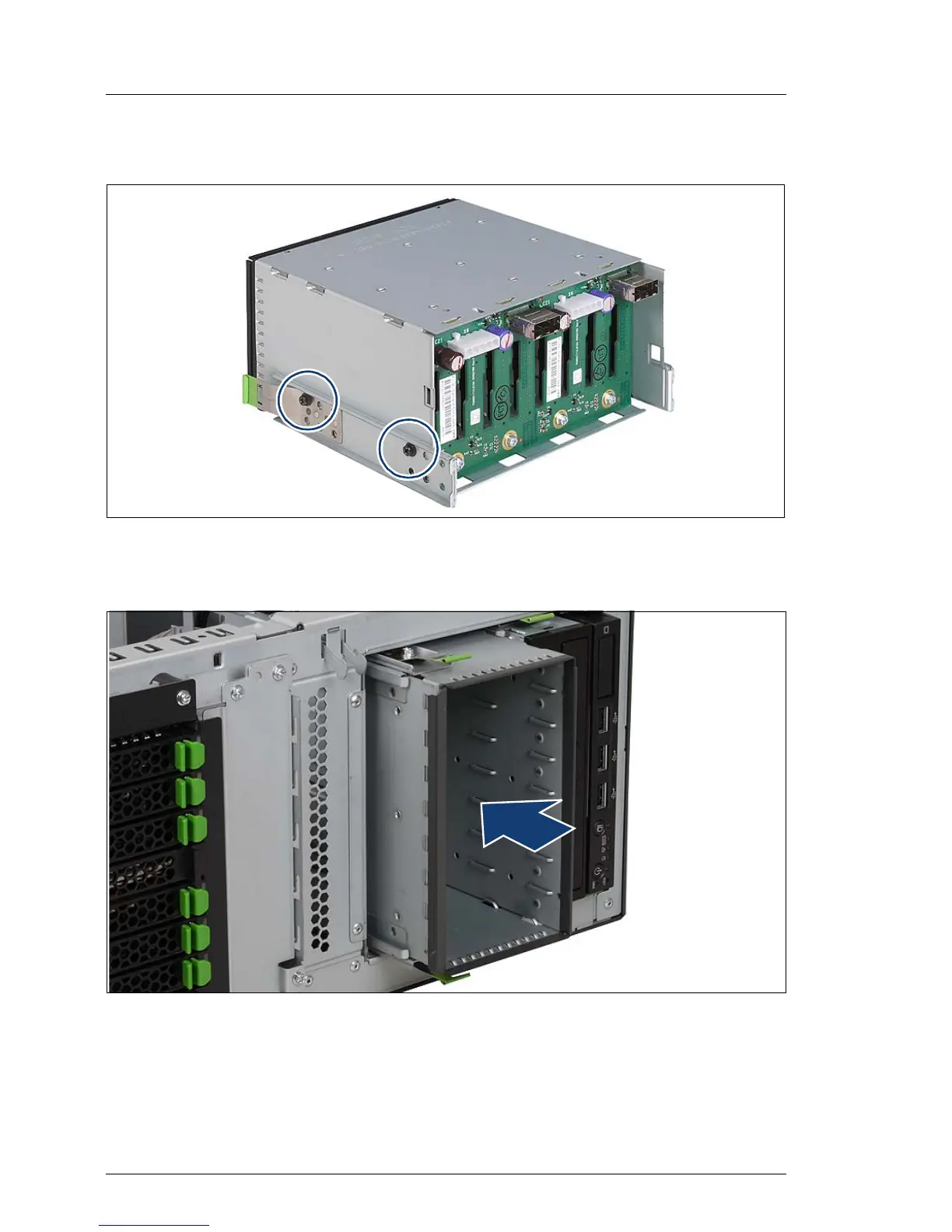

Figure 46: Attaching EasyClick rails to the 2.5-inch HDD extension box
Ê Screw the EasyClick rails onto either side using two M3 x 4.5 mm screws.
Figure 47: Installing the 2.5-inch HDD extension box
Ê Push the 2.5-inch HDD extension box fully into the two lower bays until the
EasyClick rails lock in place.
