TX200 S5 Options Guide 63
Accessible drives Installing the hard disks extension box

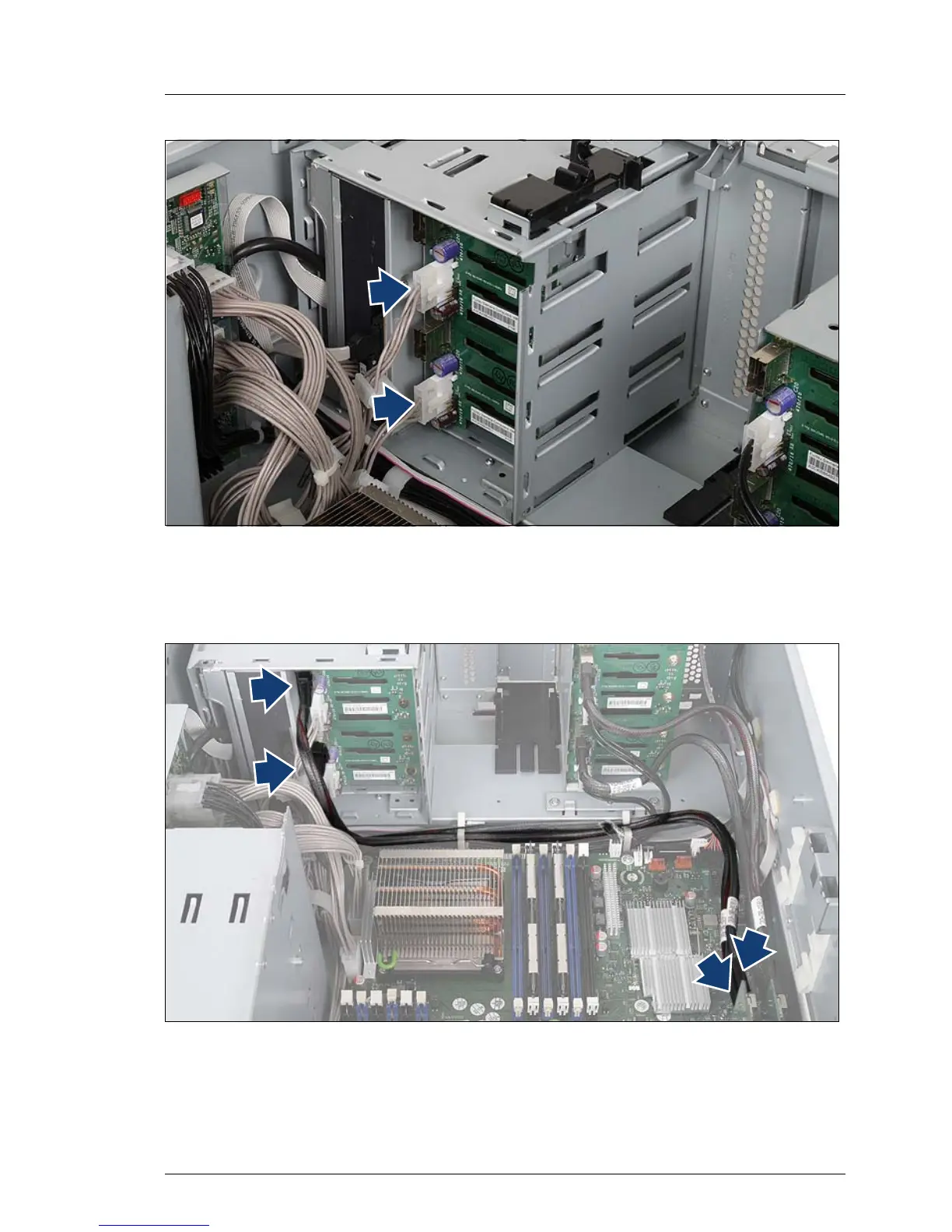

Figure 48: Example: Connecting the PS cable
Ê Connect the power cable plugs P13 and P16 to the 2.5-inch HDD extension
box (see the cabling plans in the Appendix).
Figure 49: Example: Connecting the SAS cable
Ê Connect the two SAS cables to the 2.5-inch HDD extension box and the
SAS/SATA RAID controller (see the cabling plans in the Appendix).
