70 Options Guide TX200 S5
Installing a BBU Expansion cards and BBU

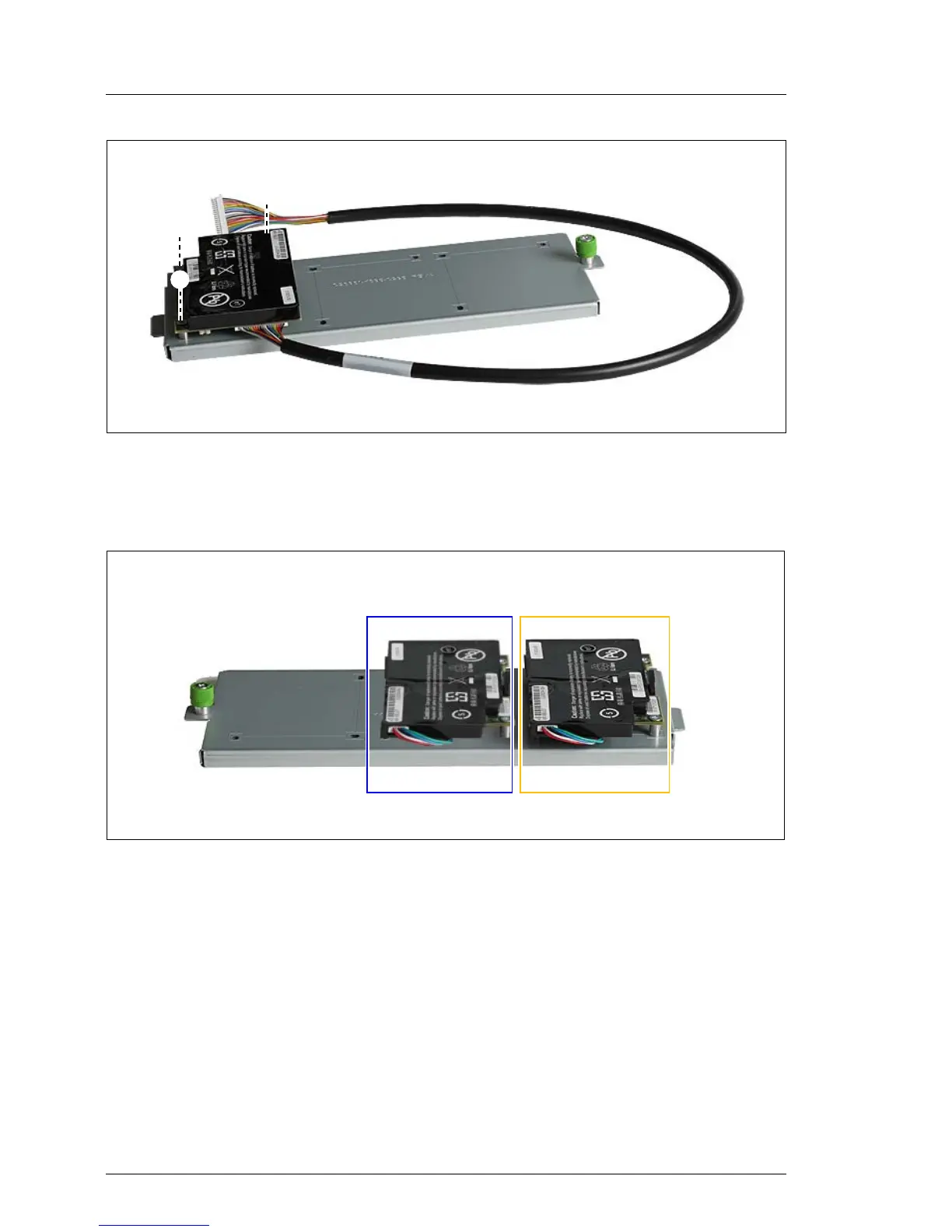

Figure 56: Fastening the BBU onto the carrier plate
Ê Fasten the BBU onto the BBU carrier plate using the three screws supplied
(1).
Figure 57: Fastening the second BBU onto the carrier plate
Ê In the case of a configuration with two BBUs:
Ê Connect the BBU cable to the second BBU.
Ê Fasten the second BBU onto the BBU carrier plate using the three
screws supplied.
Ԙ
Ԙ
Ԙ
BBU 1BBU 2
