TX200 S5 Options Guide 71
Expansion cards and BBU Installing a BBU

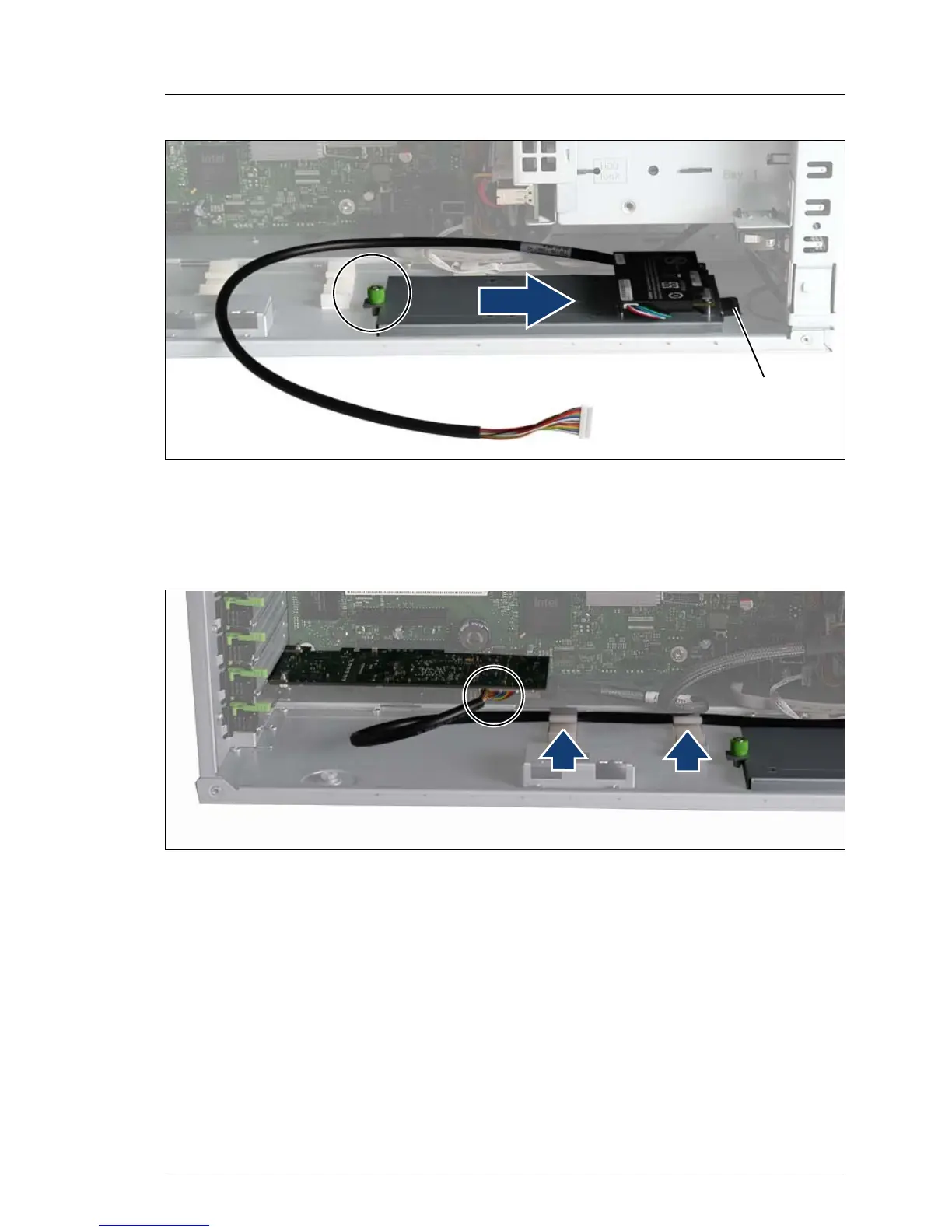

Figure 58: Installing the BBU carrier plate
Ê Push the BBU carrier plate into the housing bracket (A).
Ê Fasten the BBU carrier plate using the knurled screw.
Figure 59: Example: Connecting the BBU cable to the controller
Ê Install a controller as described in the section “Installing expansion cards” on
page 65.
V CAUTION!
Make sure that the connector side with the blank pins is facing the board.
Otherwise you risk short-circuits.
Ê Route the BBU cable in the cable clamps and connect it to the controller.
A
