TX200 S5
Options Guide
81
Conversion to hot-plug PS and redundant system fans

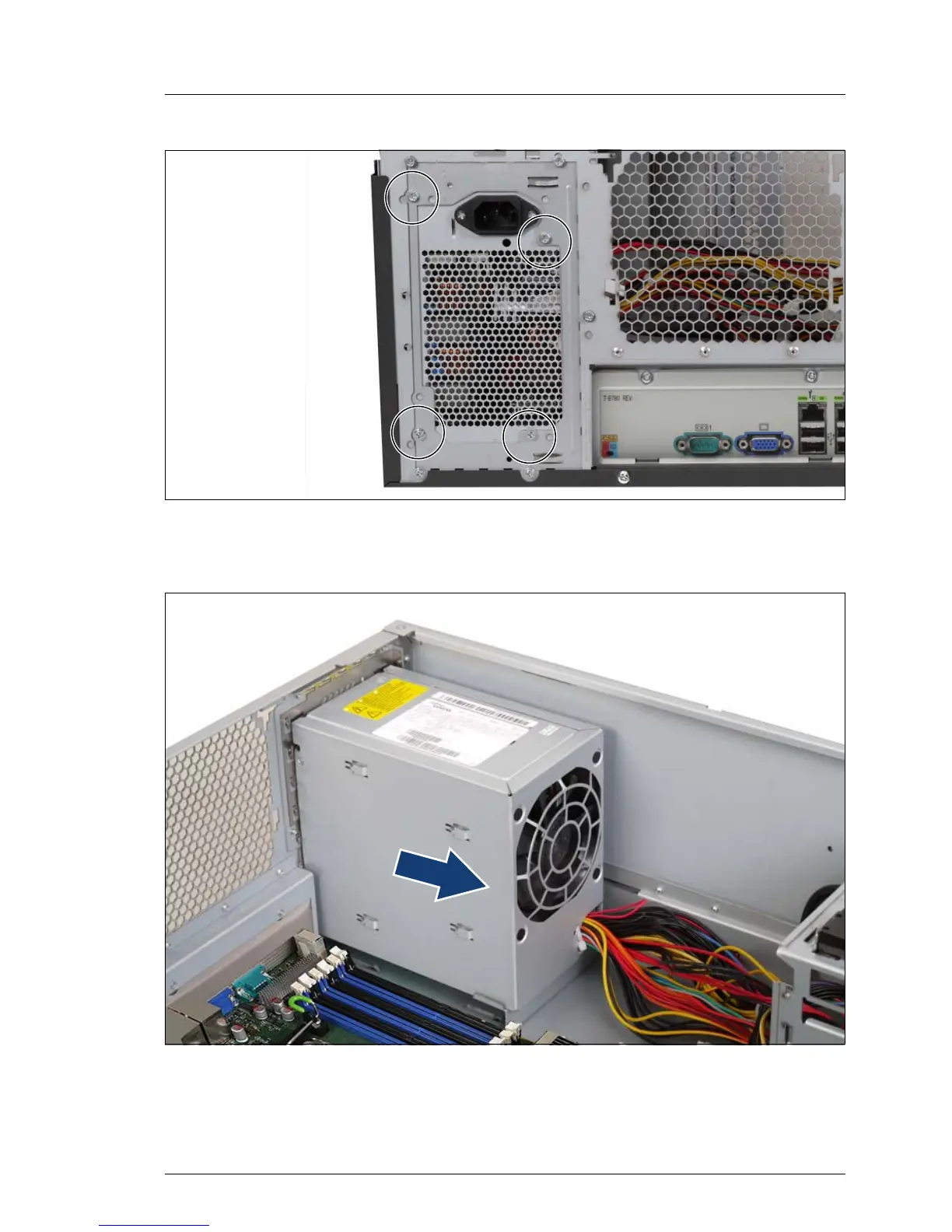

Figure 70: P
ower supply - Remo
ving the screw
Ê
Remov
e the four scre
ws.
Figure 71: Removing the
PSU
Ê
Pull the power supply unit inw
ard and take it out of the server
.
80
82
