82 Options Guide TX200 S5
Conversion to hot-plug PS and redundant system fans

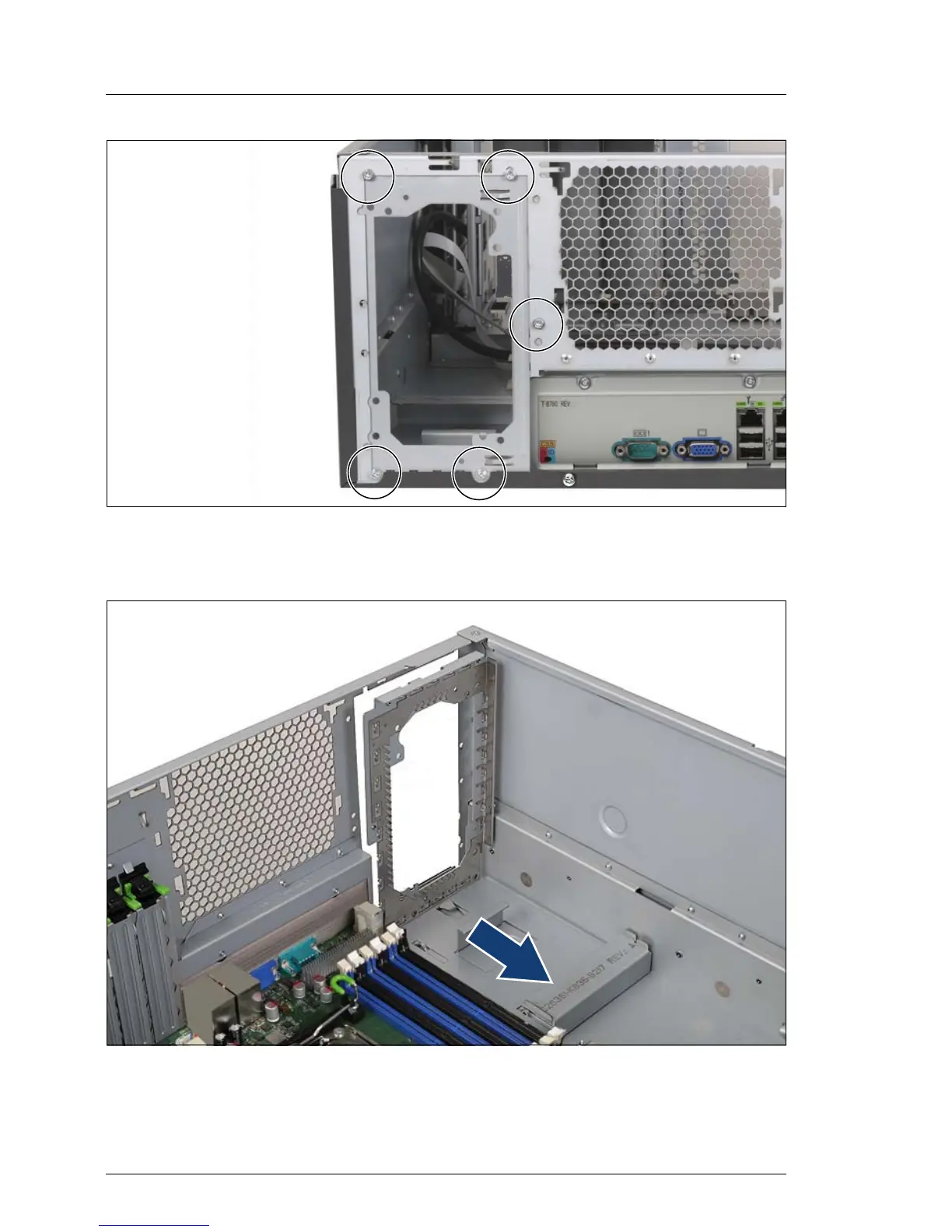

Figure 72: Adapter metal cover - Removing the screws
Ê Remove the five screws.
Figure 73: Removing the adapter metal cover
Ê Pull the adapter metal cover inward and take it out of the server.
