90 Options Guide TX200 S5
Conversion from a floorstand model to a rack model
Ê Turn the operating panel module through 90° to the left.
Ê Push the operating panel module halfway into the upper bay of the drive
cage.
Ê Connect the front panel cable and the USB cable to the operating panel
module.

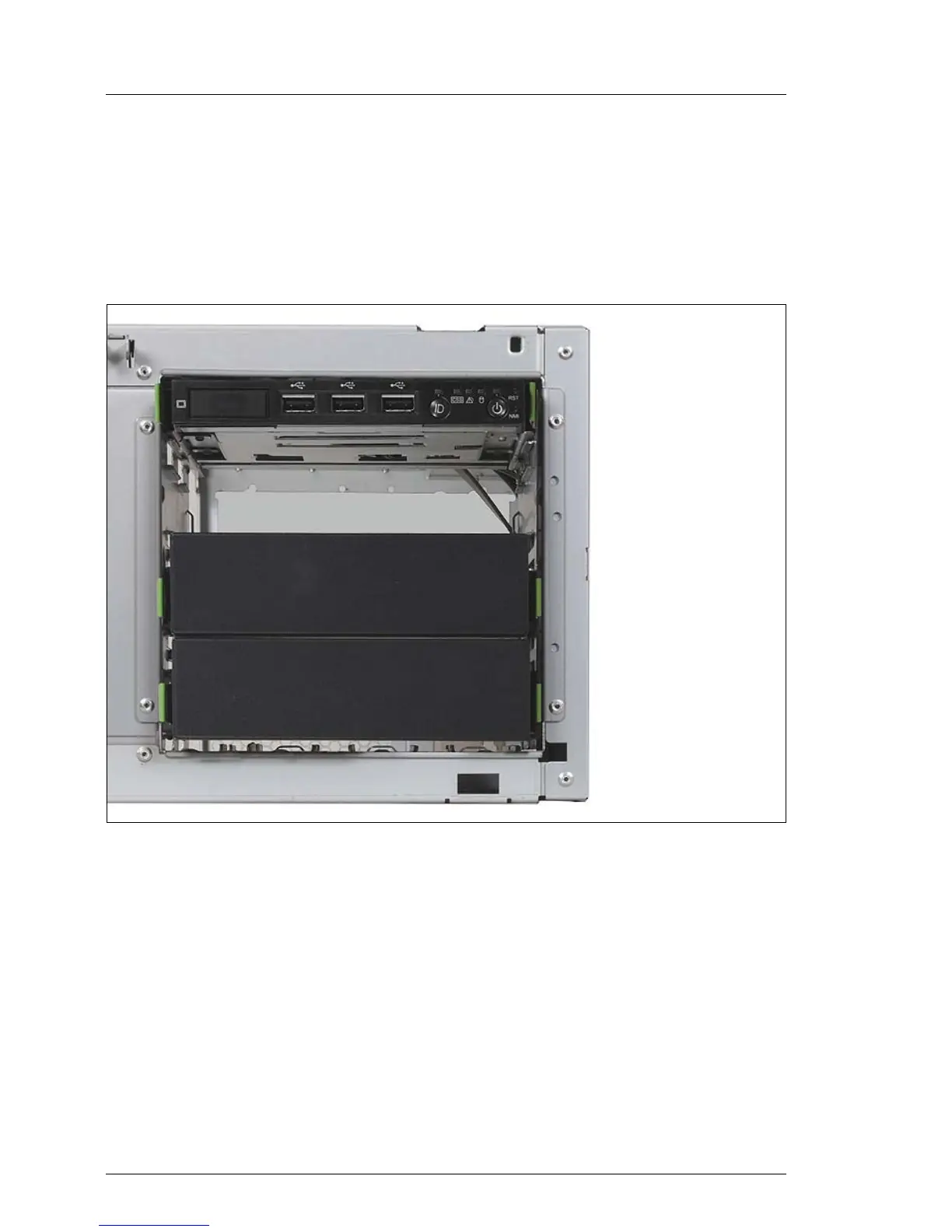

Figure 82: Installing the operating panel module
Ê Now push the operating panel module fully into the upper bay of the drive
cage.
Ê Turn the drives removed beforehand through 90° to the left.
Ê Turn the dummy covers removed beforehand through 90° to the left.
Ê Install the drives and dummy covers in the drive cage.
Ê Reestablish all connections to the drives.
Ê Attach the rack front cover as described in the section “Attaching the rack
front cover”.
