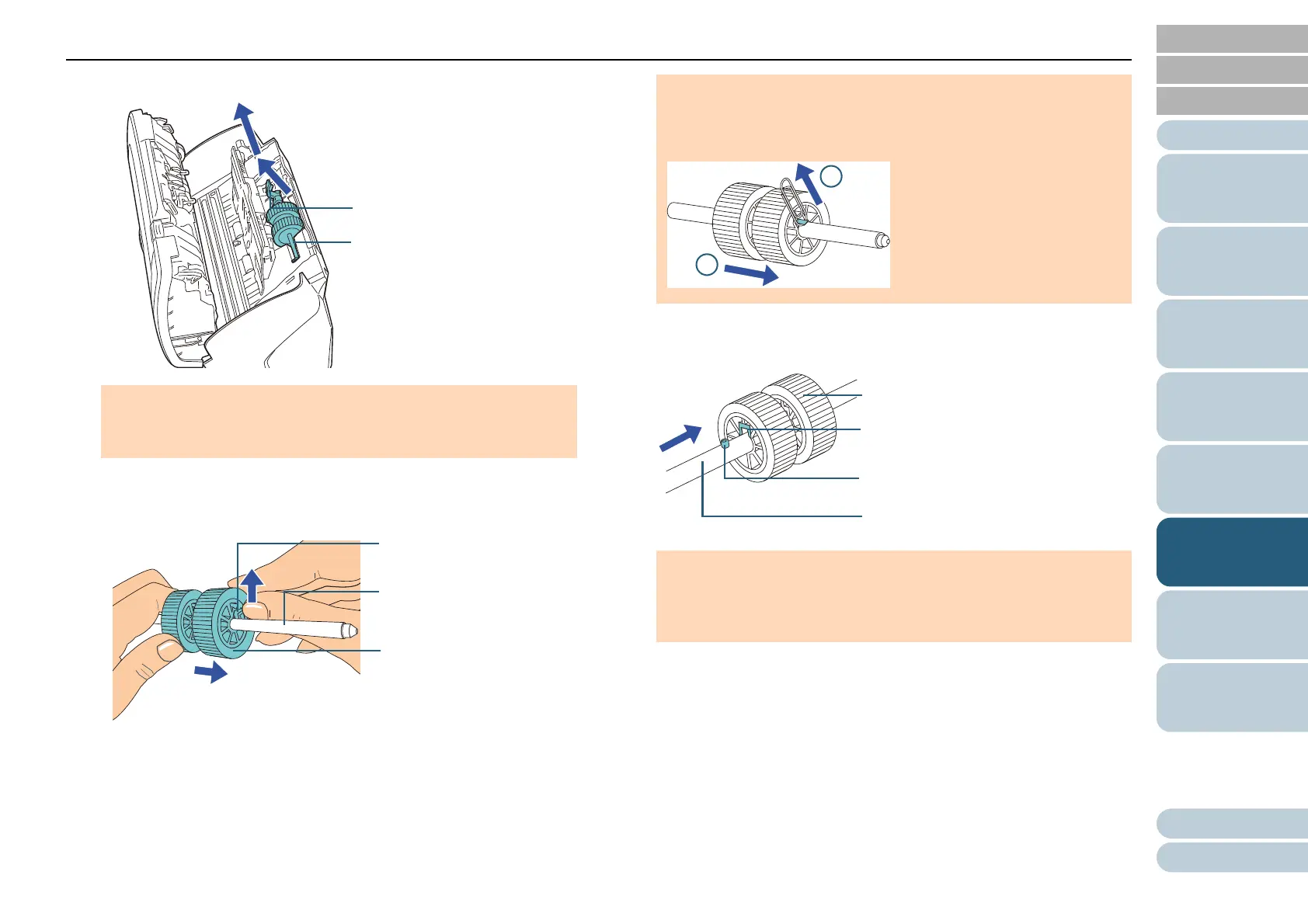

3 Lift the bushing first, then pull out the shaft.
5 Remove the pick roller from its shaft.
Pull out the shaft as you lift the retaining clip.
6 Attach a new pick roller on the shaft.
Insert the protrusion on the shaft into the slot.
ATTENTION
Be careful not to touch the gear near the bushing on the shaft as it
contains grease.
Shaft
Retaining clip
Pick roller
ATTENTION
Lifting the retaining clip with your fingernail may hurt or damage
your fingernail.
Use a paper clip or something alike if you have trouble lifting it up.
ATTENTION
Confirm that the pick roller is installed properly. Otherwise, it may
cause feeding errors such as paper jams.
Make sure to insert the pick roller until locks in place.
Shaft
Pick roller
Protrusion
Slot
To Next Page
