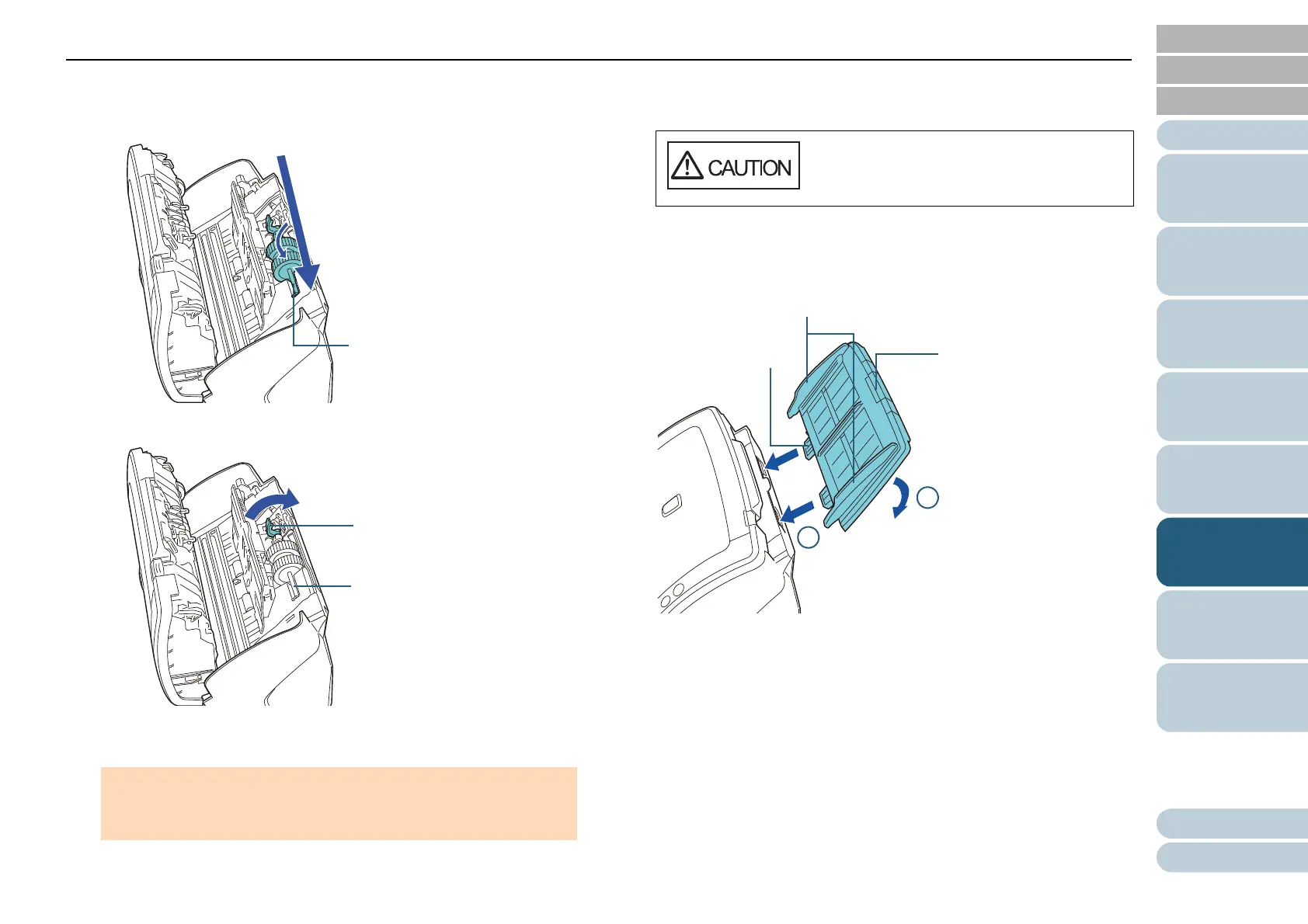

7 Attach the shaft.
1 Insert the right end of the shaft into the slot, and lower the other
end gradually.
2 Rotate the bushing to lock the shaft.
3 Close the sheet guide. Make sure that both ends of the sheet guide
are locked firmly.
8 Close the ADF.
For details, refer to "1.4 Opening/Closing the ADF" (page 25).
9 Attach the ADF paper chute (feeder).
Insert the tabs into the slots on the back of the scanner, and tilt the
ADF paper chute (feeder) backwards until it locks in place.
10 Reset the consumable counter.
Start up the Software Operation Panel and reset the counter.
For details, refer to "Resetting the sheet counters" (page 130).
ATTENTION
Confirm that the pick roller is installed properly. Otherwise, it may
cause feeding errors such as paper jams.
Be careful not to have your fingers caught
when closing the ADF.
ADF paper chute
(feeder)
Ta b
2
1
Side guides
To Next Page
