3.6 Changing Carrier Sheet Settings
ScanSnap S500 Operator's Guide 89
Basic Scanner Operations
3
[Add custom size] button
You can create up to 5 custom sizes.

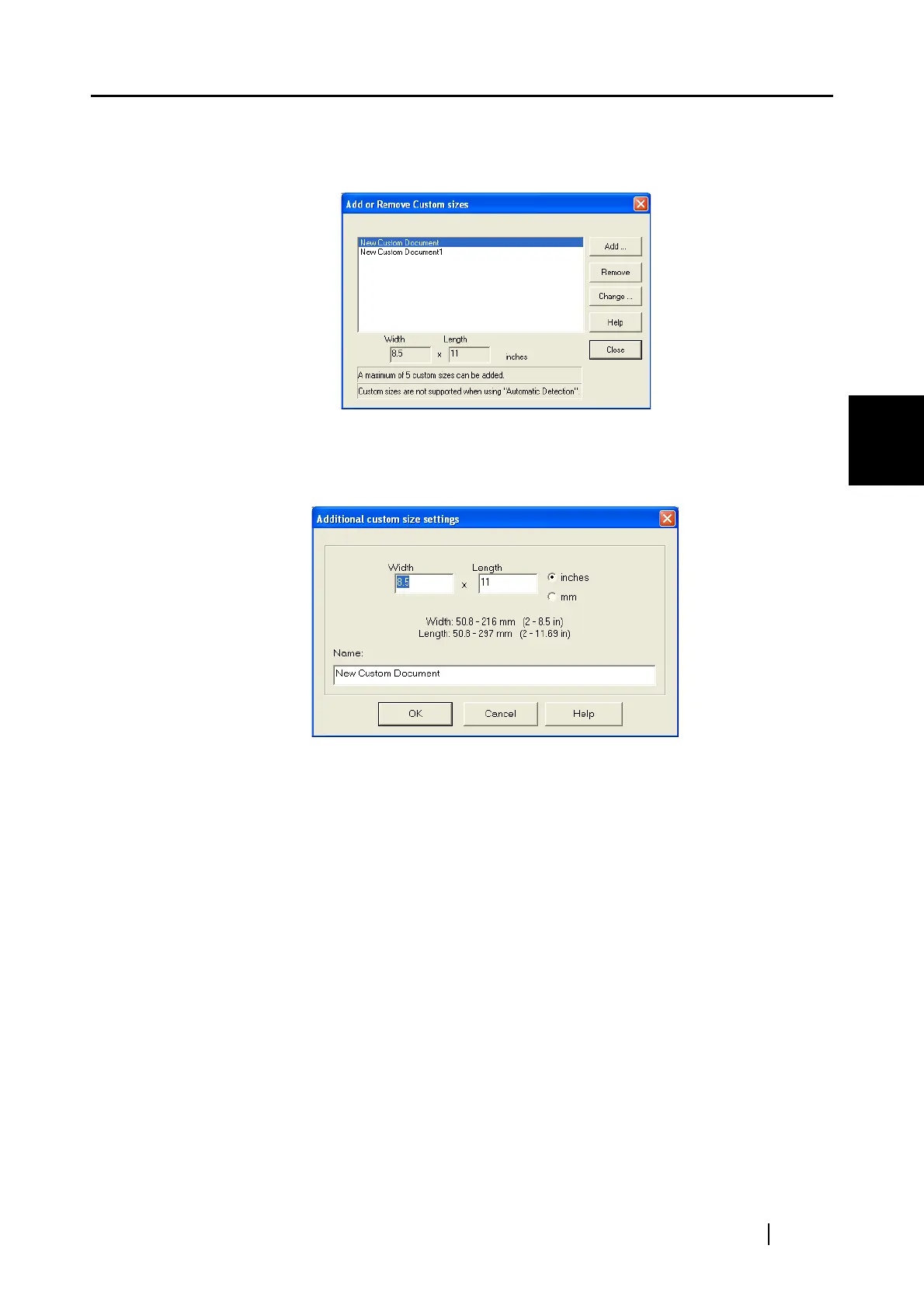

When you click the button, the following settings screen appears.
To add custom size documents
1) Click the [Add] button.
2) The following screen appears.
•Enter the document sizes.
You can set within these range:
Width: 50.8 - 216 mm (2 - 8.5 in)
Length: 50.8 - 297 mm (2 - 11.69 in)
•Enter a name you want to display in [Name:].
⇒The entered name is displayed on [Add or Remove Custom sizes].
3) When you complete the settings, click the [OK] button.
⇒ A new custom document size is created.
4) Click the [Close] button, and the "Add or Remove custom sizes" screen
closes.
To delete custom size documents
1) On the "Add or Remove custom sizes" screen, select the document size you
want to delete, and click the [Delete] button.
2) When the confirmation screen appears, click the [Yes] button.
3) On the [Add or Remove custom sizes] screen, check that the document size is
deleted, and click the [Close] button.

Fujitsu ScanSnap S500 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum system requirements	Windows 2000/ XP/ Vista
Scan media weight	52 - 127 g/m²
Power requirements	AC 100V - 240V, 50 / 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
