1.2 Names and Functions of Parts
ScanSnap S500 Operator's Guide 3
Before You Start Using Your Scanner
1
1.2 Names and Functions of Parts
This section describes the names of parts and their functions.

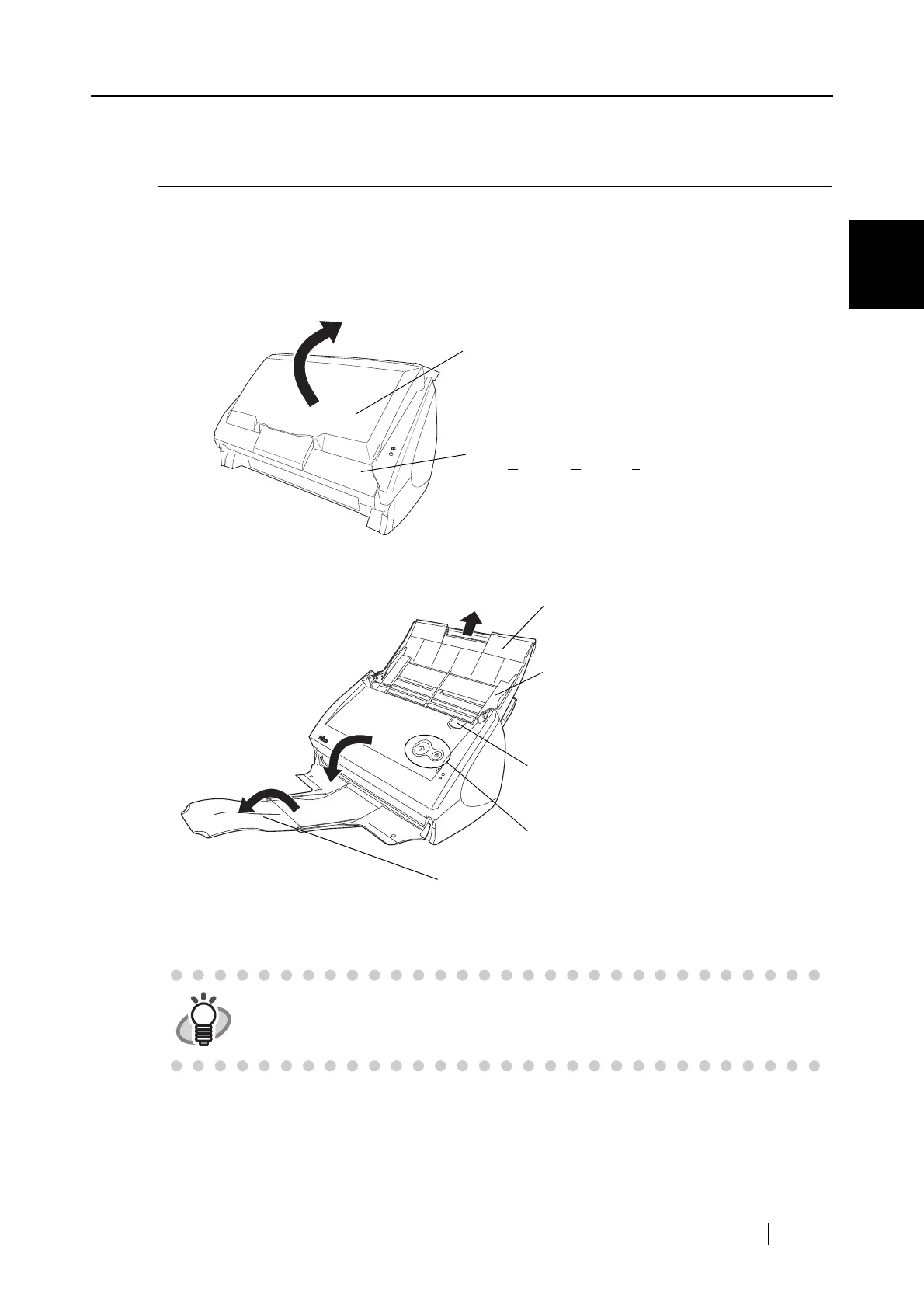

■ Front Side
You can also use the scanner without the Stacker.
Paper chute
Open the cover to use the scanner.
⇒Opening the cover turns on the scanner.
ADF
(ADF:A
utomatic Document Feeder)
Paper chute
After opening it, load the documents to be
scanned on this unit.
Side guide
Adjust the side guides to the width of
documents so that the scanned images will
notbe skewed.
Cover open lever
To open the ADF, pull this lever
towards you.
Operation button
⇒Refer to the next page.
Stacker
Before using the stacker, unfold and extend it as shown above.
To Next Page
