Fujitsu ScanSnap S500 User Manual

4.1 Using ScanSnap Manager
ScanSnap S500 Operator's Guide 101
Various settings according to your needs
4

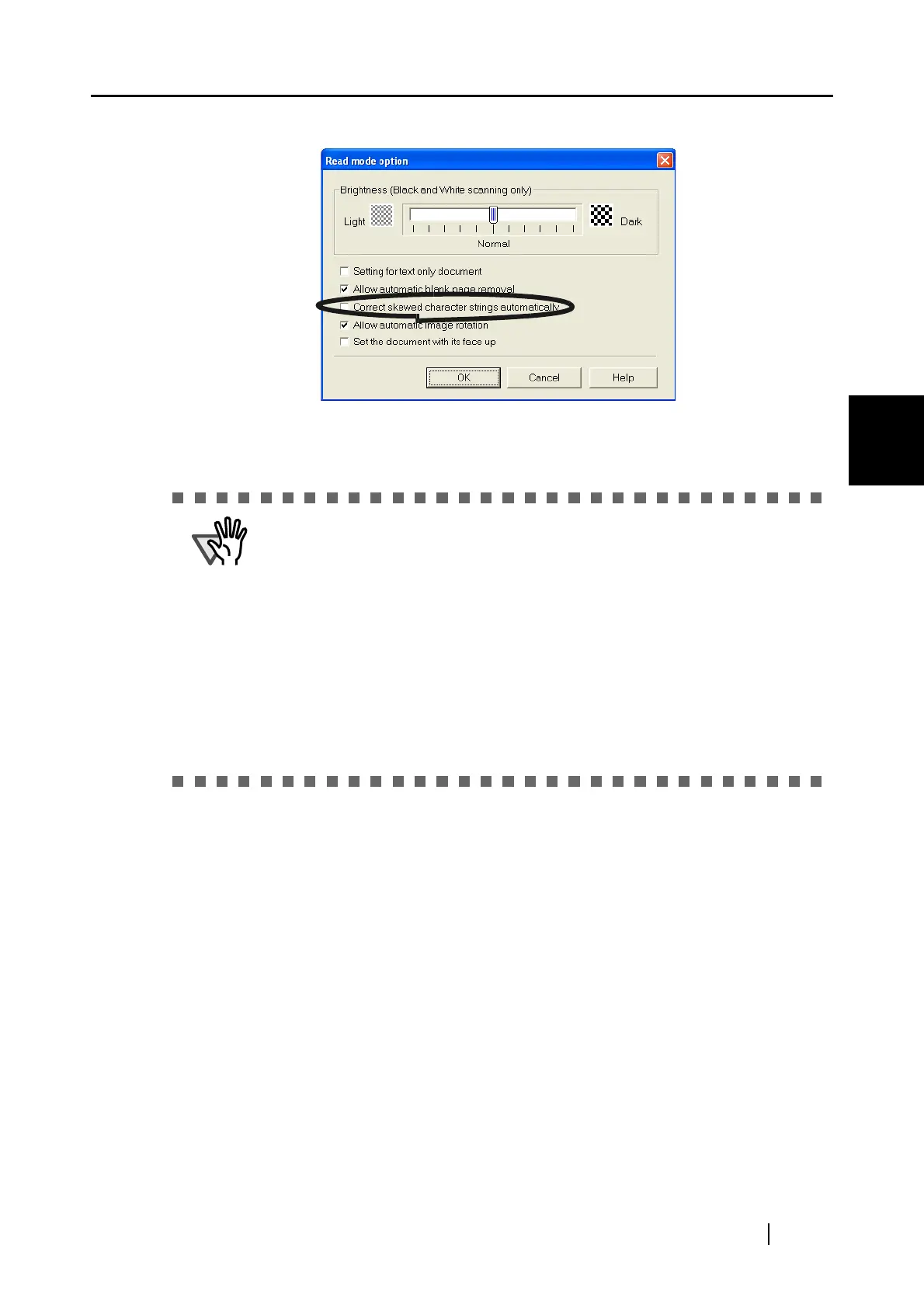

3. Select the "Correct skewed character strings automatically" checkbox.
4. Click the [OK] button to close the window.
⇒ The setting is enabled from next scanning.
ATTENTION
Up to +/-5 degrees of skews can be corrected.
This function determines a document skew based on the characters printed on
the document, so it may not work properly for the following document:
• Documents on which the pitches of lines or characters are extremely narrow,
or characters are overlapped
• Documents with many outline characters or using font styles like this
• Documents with many photographs or figures and only a few characters
• Documents with a background pattern behind characters
• Documents on which characters are printed in various direction (e.g. plans)
• Documents with long diagonal lines
• Documents with handwritten characters
*When you scan such documents, clear the checkbox.

Fujitsu ScanSnap S500 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum system requirements	Windows 2000/ XP/ Vista
Scan media weight	52 - 127 g/m²
Power requirements	AC 100V - 240V, 50 / 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
