Working with the Tablet PC
► Remove the power plug of the mains adapter f rom the mains socket.
► Pull the mains adapter cable out of the DC jack (DC IN) o f the Tablet PC.
1
2
4
3

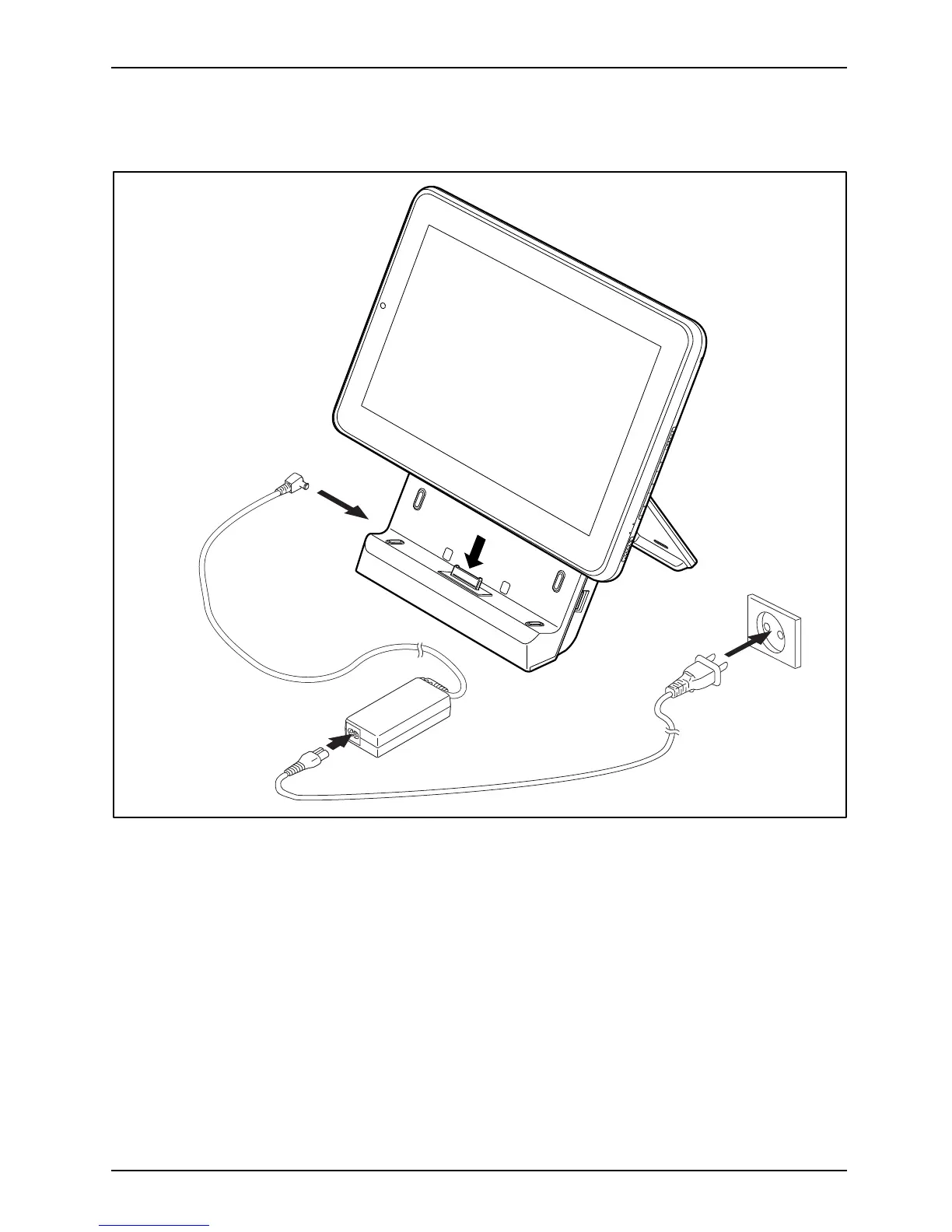

► Position the Tab let PC so that it is in line with the storage space of the Cradle.
► Push the Tablet PC on to the Cradle in t he direction o f the arrow ( 1) until
you notice it engage with the plug.
► Plug the DC output connector on th e mains adapter into the DC input
connector (DC IN) on the Cradle (2).
► Connect the power cable to the mains adapter (3).
► Plug the power cable into the mains so cket (4).
► Close the clip on the rear side of the Cradle.
Fujitsu Technology Solutions 51
