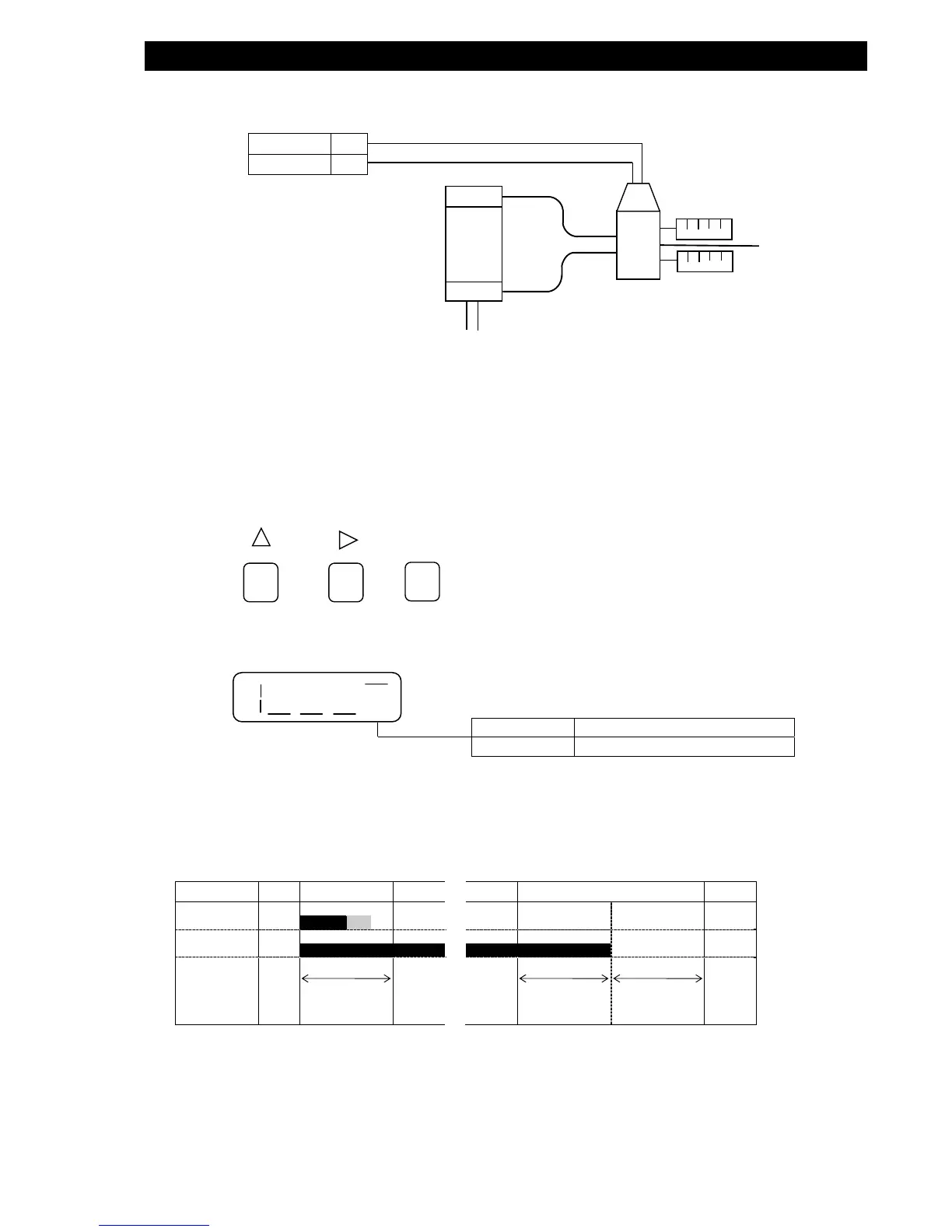

ELECTRICAL AND AIR PIPE LINE CONNECTIONS
● WORK CLAMPING CYLINDER CONTROLLED BY A DLY TIMER
ＳＯＬ１ 27
ＳＯＬ１ 28
z When selecting a cylinder driving solenoid valve, please make your selection according to the
specifications indicated:
・Driving Voltage : FL-2□□□-0：AC100V 50/60HZ
FL-2□□□-2：To accord with external valve power source specs.
・Power Consumption : Less than 100VA
z Preset the Air Leak Tester testing condition to:.
・Set to condition setting status
ＳＥＴ
＞ ＞
ＤＩＳＰＬＡＹ
For further details of the test condition setting procedures, refer to page 38.
z Operation timing:
・Set the time for clamping/unclamping by DLY timer.
RDY DLY CHG DET EXH RDY
ＳＴＡＲＴ
ＳＯＬ１
DLYSET T.
EXH SET T.
DLY SET T.
CYLINDER DRIVING
SOLENOID VALVE
WORK CLAMPING CYLINDER
◎
ＯＮ
ＯＦＦ
・PRESET THE CYLINDER CONTROL METHOD
SWITCH STATUS
ＯＮ
CONTROL BY DLY TIMER
∬
∬
To Next Page
