FULTON Electropack Series - Element Removal

EP18-72-IOMM-2015-7
Fulton Ltd
Page 29
MAINTENANCE - 4
4.4.1 ELEMENT REMOVAL

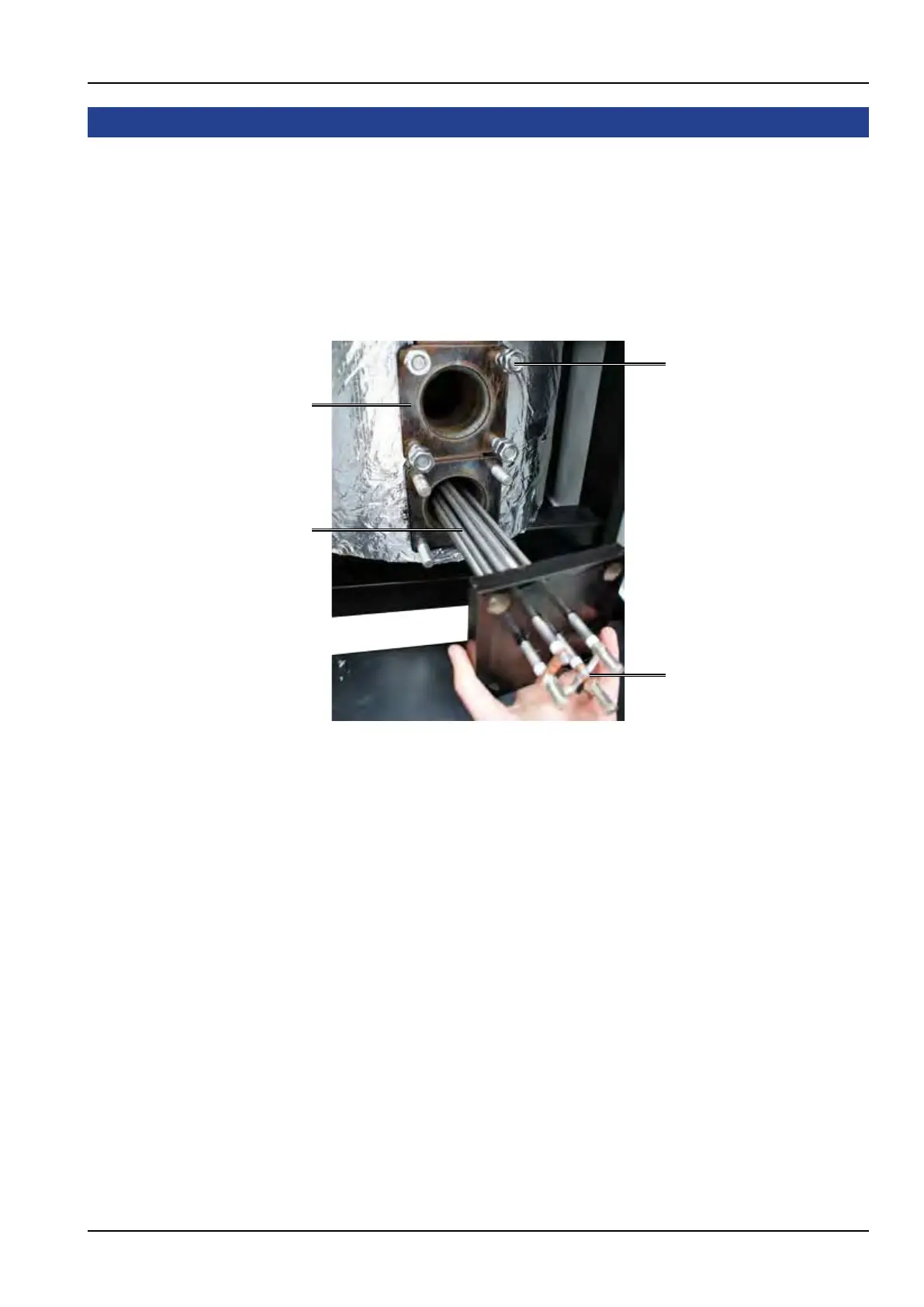

Figure. 14 - Boiler Element Removal
Isolate and completely drain the boiler (see Section 3.5 - Draining the Boiler) before removing
the boiler heating elements.
Removethefourelementsecuringnutsfromtheelementmountingange.Elementisnowloose
for removal from the boiler.
The elements will need removing to carry out internal inspections of the boiler and to complete
element checks mentioned in Section 4.4 - Element Care and Protection.
Boiler heating
element
Element power
supply terminals
Element
mountingange
Element securing
nut
