APPENDIX - A
Electropack 18 kW - 72 kW
Dimensions & Specication
Technical Information
Sheet No. 115 Issue 9

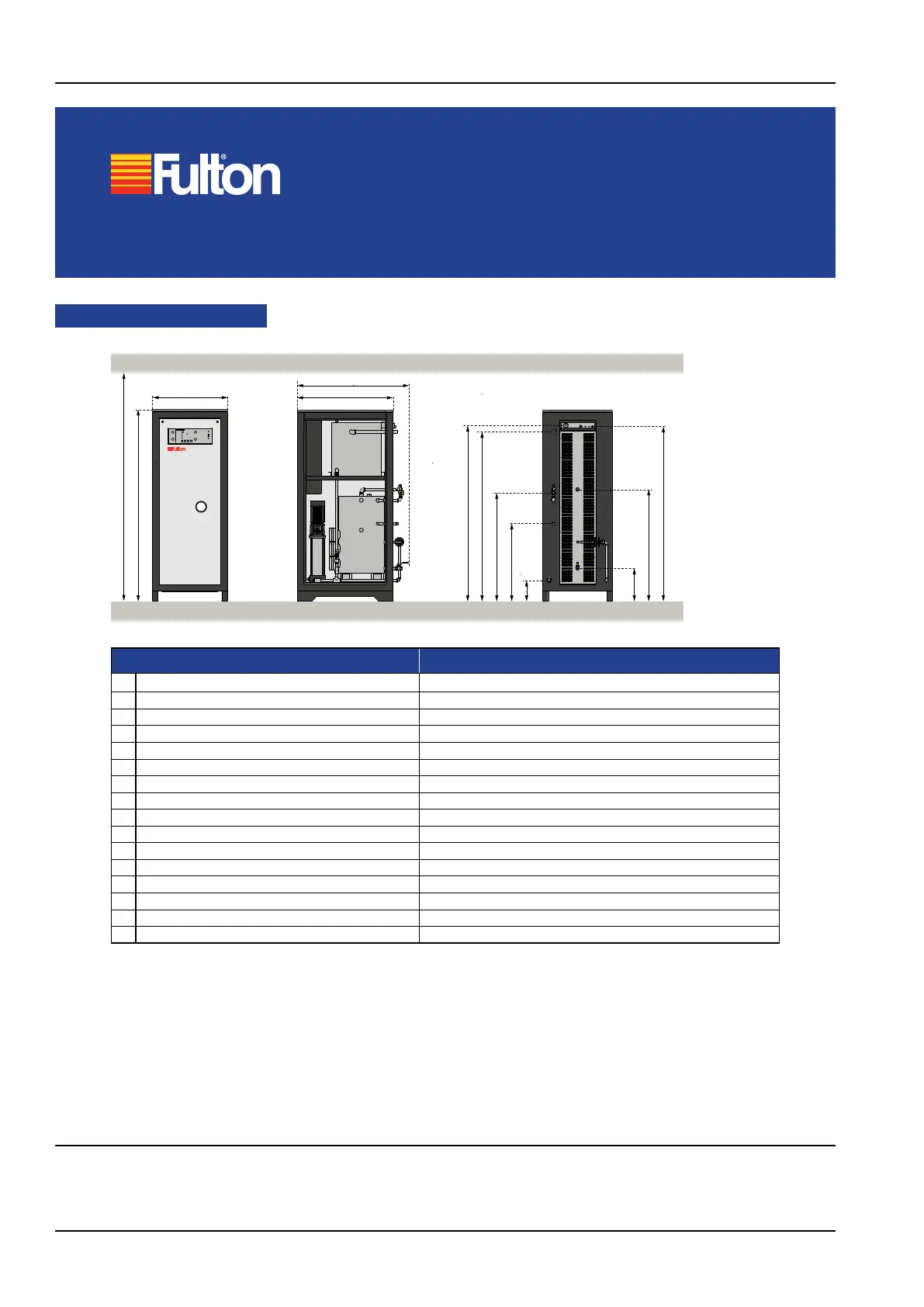

Dimensions
Page 1 of 2
* Required for maintenance and element removal. Once installed, a minimum clearance of 600 mm is required all around the unit.
Note: Dimensions mm
Note: Dimensions are approximate and only intended as a guide to aid installation.
MODEL: ELECTROPACK 18, 24, 36, 48, 54, 72
A
Minimum Clearance* 2230
B
Overall Width 760
C
Overall Depth 1100
D
Overall Height 1931
E
Boiler Depth 965
F
Safety Valve Discharge Height 1085
G
Steam Outlet Height 1125
H
Feedwater Inlet Height 1760
J
Feedwater Tank Vent 1770
K
Feedwater Tank Drain 210
L
Feedwater Tank Overow 1705
M
Condensate Return Height 1757
N1
Main Boiler Blowdown (1 Element Vessel) 630
N2
Main Boiler Blowdown (2 Element Vessel) 495
N3
Main Boiler Blowdown (3 Element Vessel) 330
P
Water Sample Point Height 780
A
D
L
F
J
K
B
H
E
C
P
M
G
N1
N2
N3
