User Manual
47
Use of the Device in Various Network Scenarios
4
4 Use of the Device in Various
Network Scenarios
W500 can be used for different network scenarios, as described below.
4.1 Bridge Mode with WEP
In bridge mode, two W500s are linked together and this connection is used to
couple two LANs. The two W500s in bridge mode do not offer an access point
function, i.e. no clients can be connected with the W500s in bridge mode.

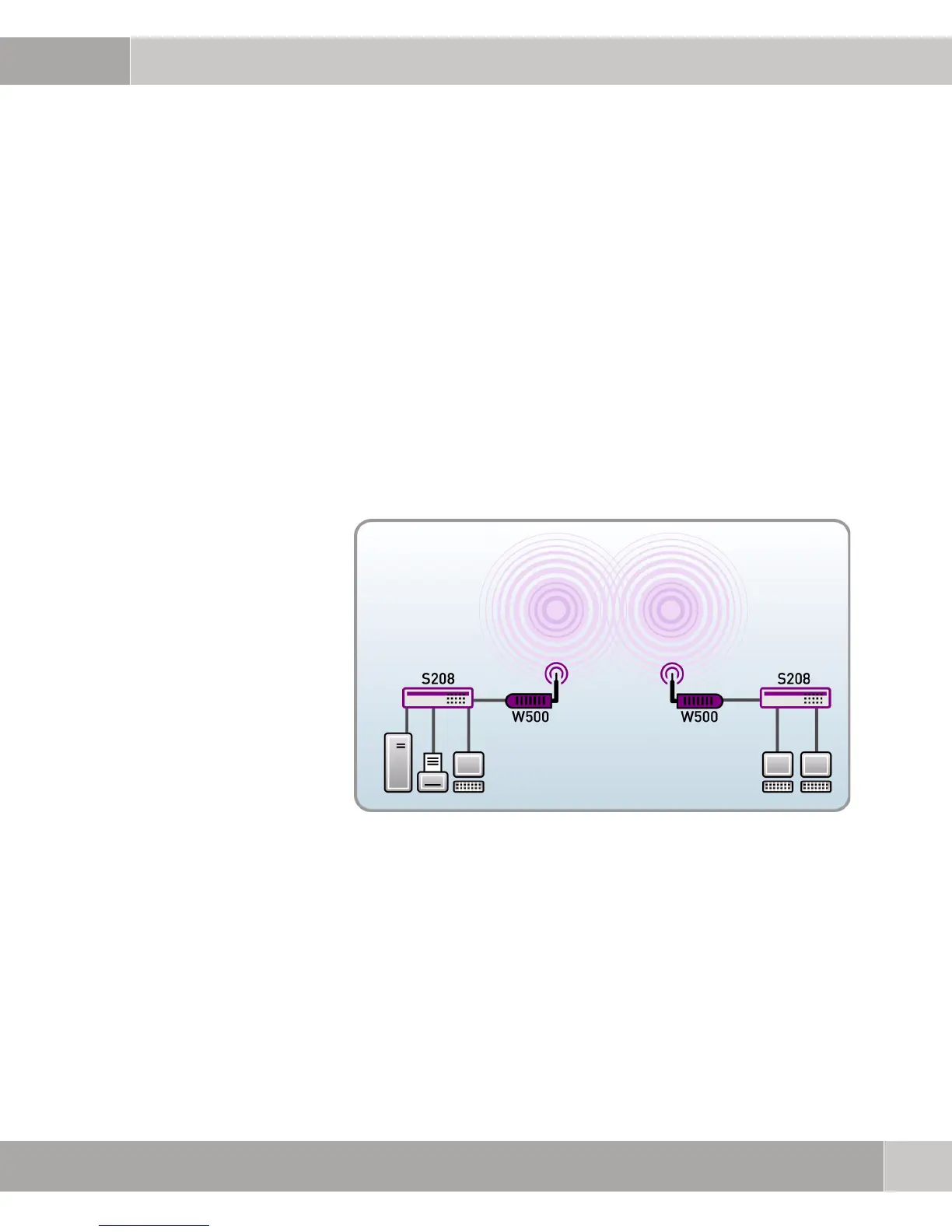

Figure 4-1: Bridge mode
4.1.1 Login
To establish the connection with the web browser, log in with user name and
password (the standard IP address is 192.168.0.252, the standard user name
is
admin and the standard password is funkwerk). The language can also be
selected on the Login page (
English or German).
