User Manual
67
Use of the Device in Various Network Scenarios
4
4.3.4 Setting the Security Mode
For AP+Repeater mode, the security selection can be made in the WIRELESS
LAN - S
ECURITY menu between WEP and WPA2-PSK. A freely selectable PSK
must be specified for WPA2-PSK, which also has to be entered on the opposite
side. Confirm entry with
OK.

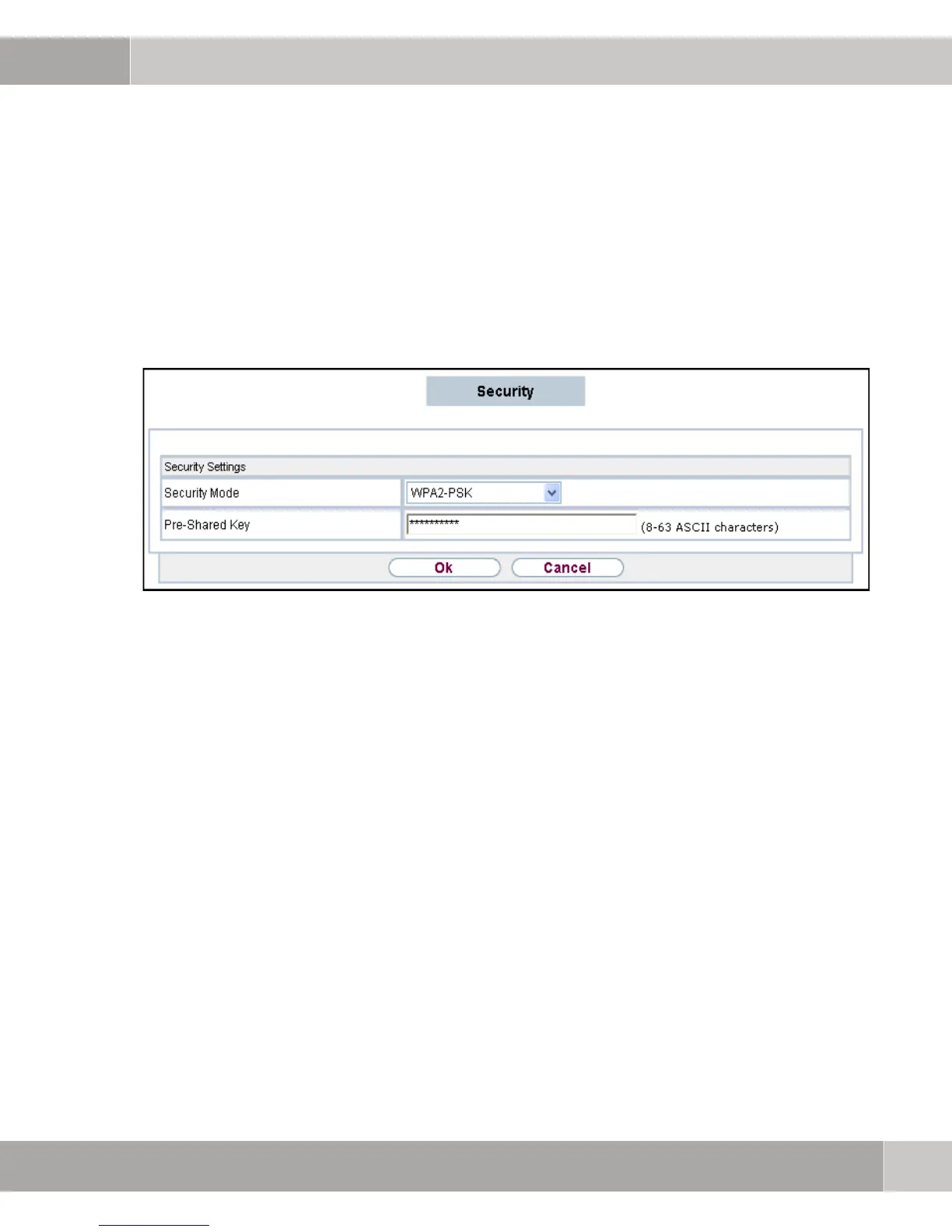

Figure 4-23: Security Mode
4.4 Wireless Client Mode with WPA2-PSK
In this scenario, a W500 is configured as a client and can log on at a central AP
as such. A PC can be connected to the wireless client, which can use the wire
-
less client AP as a WLAN interface, as it were.
Firstly a W500 or another access point must be configured as an AP with a cor-
responding network name (SSID), channel settings and security. This takes
place as in the AP mode scenario.
