2-1
2. WIRING

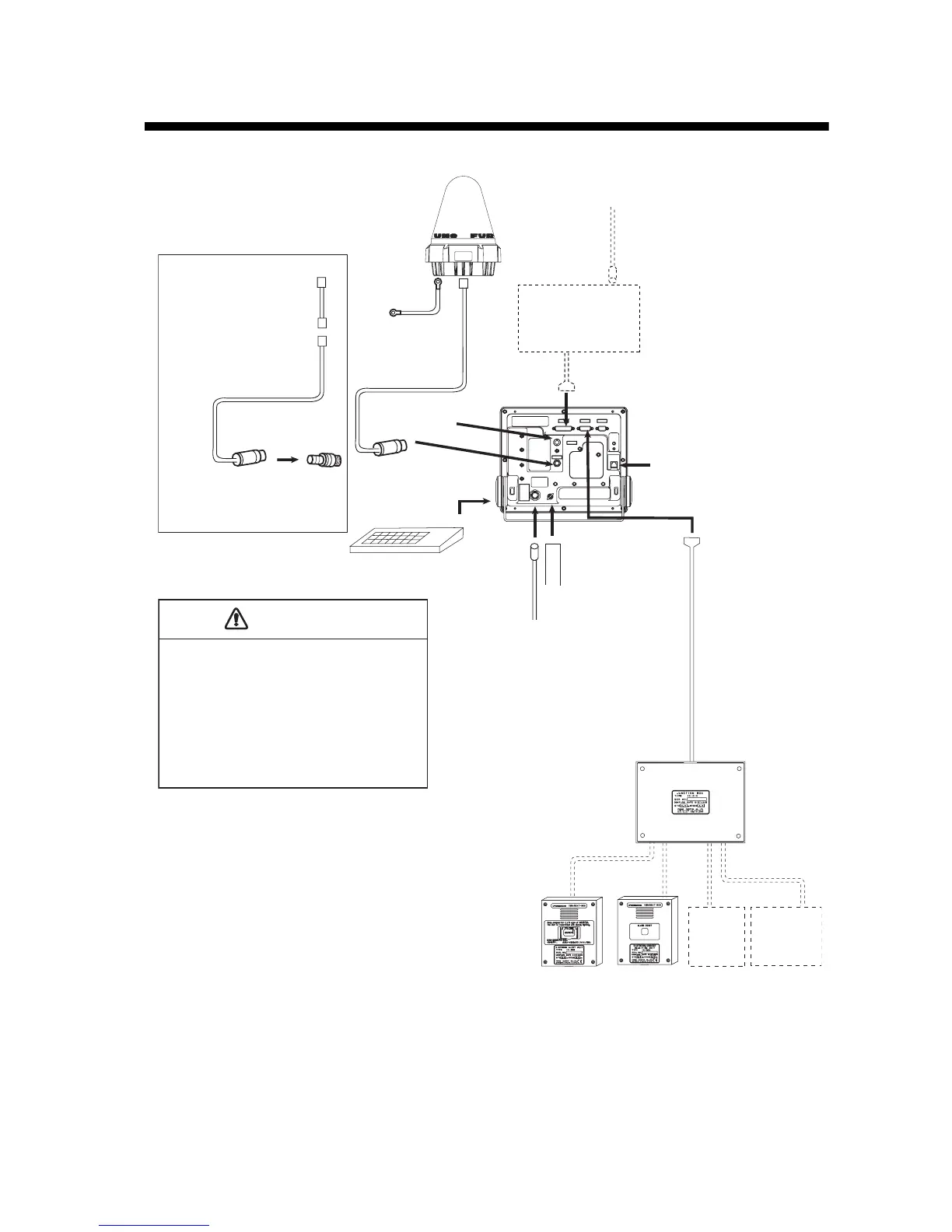

Wiring of FELCOM 18
Power supply
24 VDC
Copper strap
1.2 m
Ground wire
Distress alert/
Received call
unit IC-305
or IC-350
TP5FBAW-5DFB,30
m (No armor)
Connector at both
ends
0.34 m
Mini keyboard
(to USB terminal
on the front panel)
5D-FB-CV-NP, 30 m
8D-FB-CV, 50 m
12D-SFA-CV, 100 m
Connector at one end
For cable w/armor
IC-307
Navigator
CO-SPEVV-SB-C 0.2x5p
(option) or TTYCS(LA)-4
(Japanese Industrial
Standards)
LAN cable
(10BaseT, local supply)
DGPS
Connector
N-P-5DFB
N-P-8DFB
N-P-12DSFA
(Supplied, local arrangement)
24 VDC
VCTF-0.75x3C (5 m)
TNCP-NJ
connector
(Supplied)
16S0184, 3 m
Junction Box
IC-318
Alarm unit
IC-306
The terminal unit is shipped with a 15 A
fuse in its power cable. This fuse is for use
with a 12 VDC power supply.
For a 24 VDC power supply, replace the
fuse with a 7A fuse (supplied). Attach the
"7A" label to the fuse holder on the power
cable. Use of a wrong fuse can damage
the equipment.
MJ-A3SPF0018-050Z
Cable Assy.
TPA5FB0.4NJ5FBA-5DFB
CAUTION
Printer
PP-510/PP-520
To Next Page
