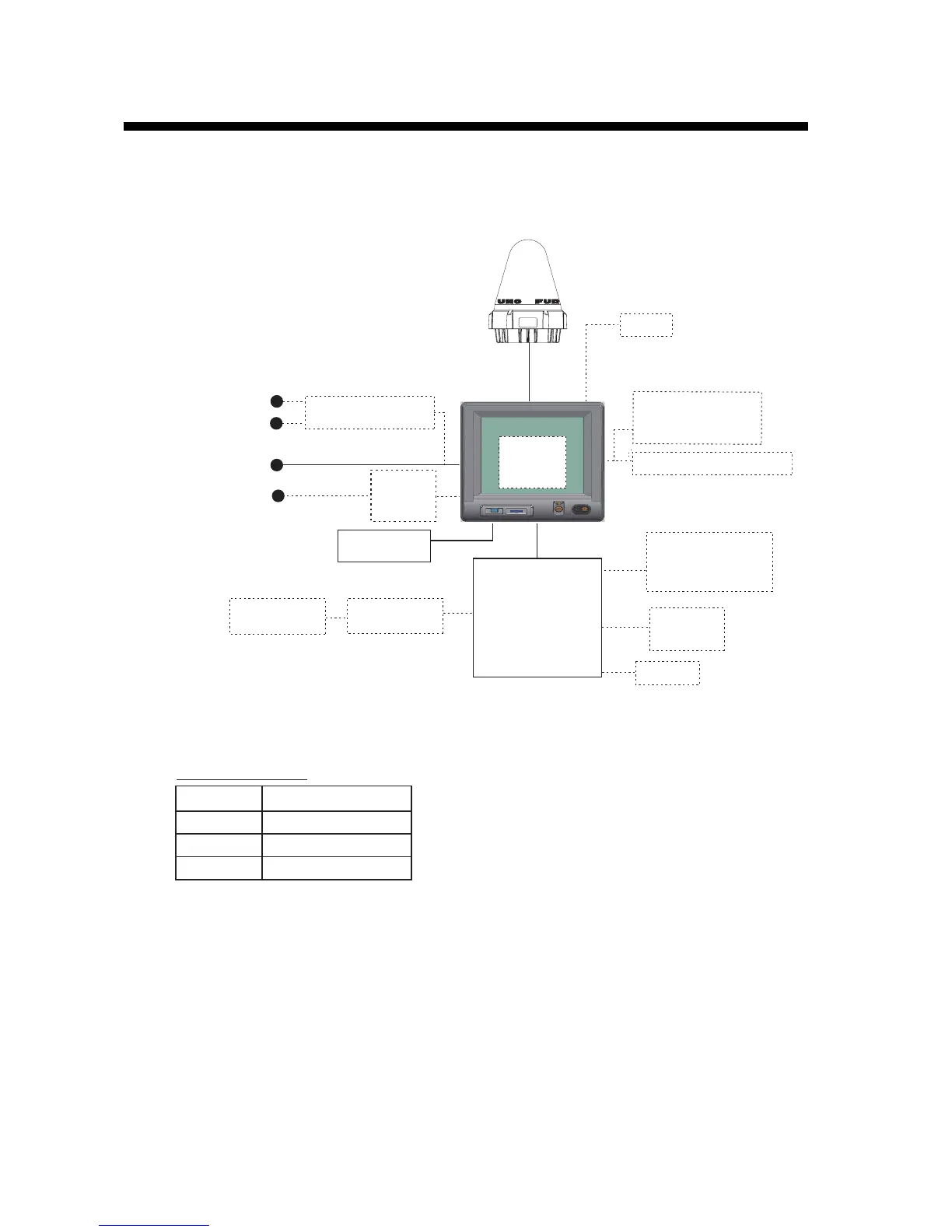

SYSTEM CONFIGURATION
Standard configuration is shown with solid line.
Printer**
PP-510/
PP-520
ANTENNA
UNIT IC-118
TERMINAL UNIT
IC-218
JUNCTION
BOX IC-318
Navigator
POWER SUPPLY
100-115/200-230 VAC ,
1φ 50/60 Hz
POWER SUPPLY
12/24 VDC
AC/DC Power Supply
PR-240
For 12 VDC power supply,
DC-DC converter is
required to use PP-510 or
PP-520.
Personal Computer
(PC/AT compatible)
Shipboard LAN (Ethernet)
Mini Keyboard
5139U
DGPS
CATEGORY OF UNITS
Unit Category
Terminal Unit Protected from weather
Antenna Unit Exposed to weather
Other Units Protected from weather
**: Mandatory for EGC operation as required by IMO RES. A.664(16).
Distress Alert/
Received Call Unit
IC-305 or 350
Alarm Unit
IC-306
SSAS Alert Unit*
IC-307
SSAS Alert Unit*
IC-307
(Max. 3 units)
Standard supply for SSAS
*: At least two SSAS Alert Units are required.
Built in
GPS Board
OP16-62
POWER SUPPLY
24 VDC
POWER SUPPLY
24 VDC
To Next Page
