2. WIRING
2-7
2.4 Control Unit and Remote Controller
Ground
Connect a IV-1.25 sq. ground wire (local supply) between the ground terminal on the
control unit and the ship’s ground.
How to connect the remote controller
Connect the optional remote controller (FSV-854) as shown below.

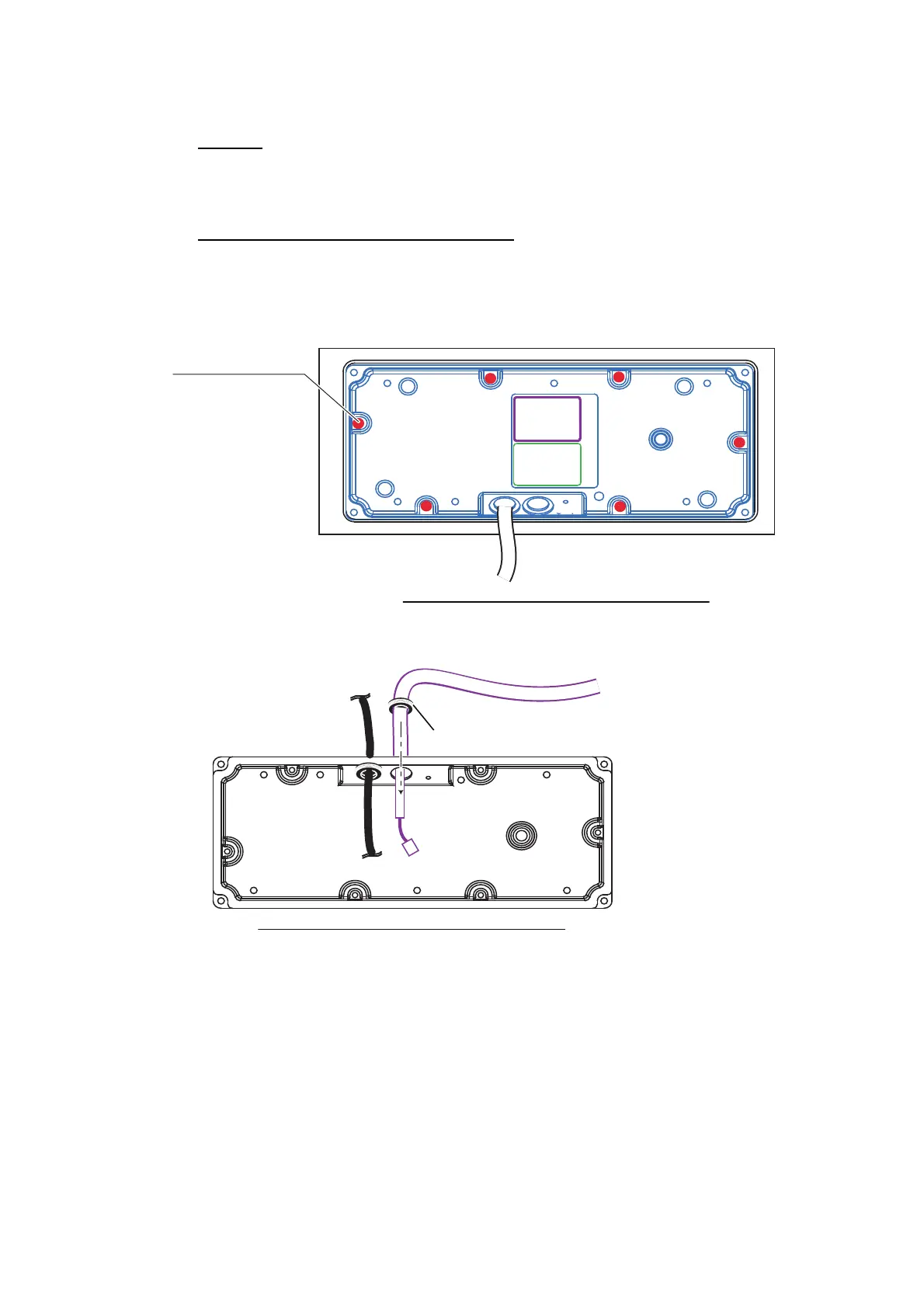

1. Unfasten the six pan head screws at the bottom of the control unit to detach the
cover.
2. Cut a cross in the grommet on the cover then pass the remote controller cable
through the grommet.
Pan head screw
M4×25, 6 pcs.
Rear side of the control unit (cover removed)
Control unit cable
(10S2884)
Grommet
Remote controller
cable
Rear side of the control unit (cover removed)
To Next Page
