1.4 Keyboard and trackball
Keyboard and trackball must be mounted close together, such that both can be operated
simultaneously by one person.
When selecting a mounting location, keep in mind the following points:
1. Select a location where the control unit can be operated conveniently.
2. Locate the unit away from heat sources because of heat that can build up inside the
cabinet.
3. Locate the equipment away from places subject to water splash and rain.
4. Determine the mounting location considering the length of the signal cable between the
keyboard unit and the processor unit. (The length of the signal cable is 1,3 m).
5. Determine the mounting location considering the length of the signal cable between the
trackball unit and the processor unit. (The length of the signal cable is 1,9 m).

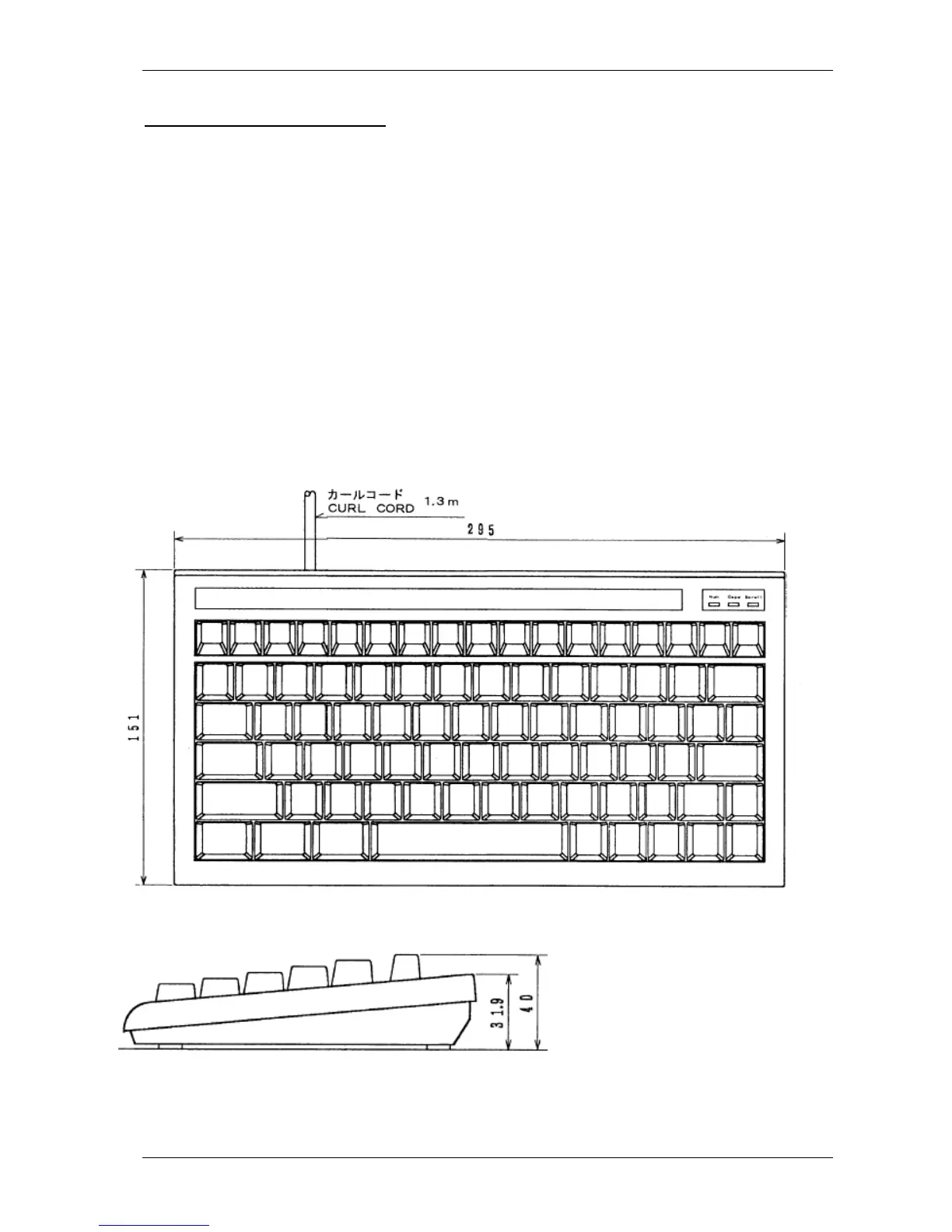

Outline dimensions for BTC-5100C PS/2:
All dimensions in mm.
