TECDIS Installation Manual Page 33

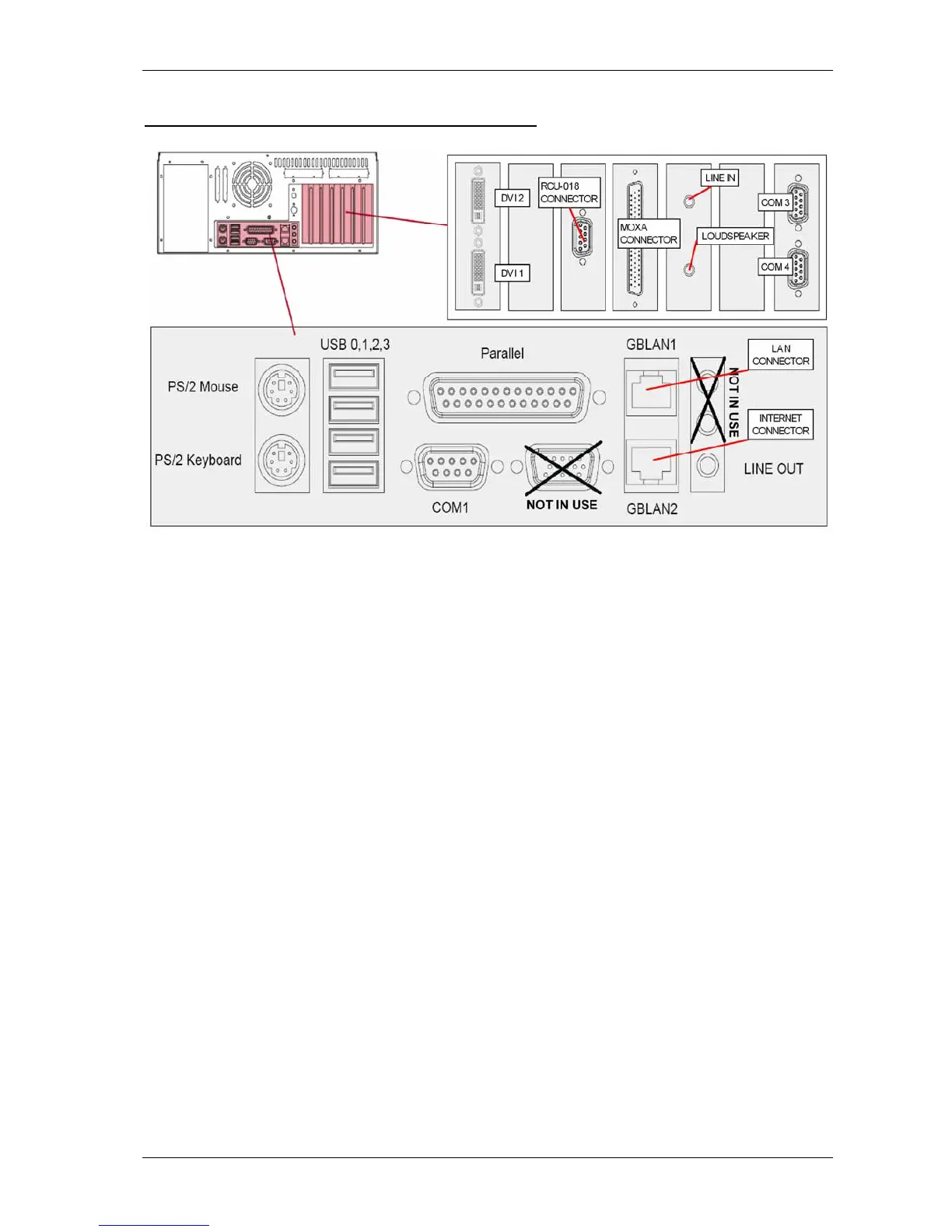

2.3 Processor connectors, HT 405P4 TEL-A1
• NB! Only connect Furuno RCU-018 to RCU-018 connector. Proprietary connector
supplies live 12V DC current and may damage any other equipment connected!
• To fully comply with type approvals:
-Ferrites (Würth 74271221) must be mounted on COM / LPT cables.
-Ferrites (Würth 7427111) must be mounted on LAN cables.
• COM1, COM3 and COM4 are to be used for ECDIS monitor control, TEA-01 Alarm
central interface. Other sensors may be connected to COM1, COM3 and COM4 via an
RS232/RS422 interface (such as AD400).
• We advise that only COM1, COM3 and COM4 are used to connect AIS, via an
RS232/RS422 interface.
• If optional speaker connectors HT00072 Opt-A1 are used, LINE OUT and LINE IN are
to be connected using the supplied cable.
• Lan connector GBLAN1 is to be used when connecting the TECDIS unit to other
TECDIS units, T Adapter or Furuno FAR-2xx7 series radar.
• Lan connector GBLAN2 can optionally be used for connecting the TECDIS unit to other
networks or internet. To fully comply with type approvals when connected to internet,
a switch must be made available to disconnect TECDIS from internet when the
connection is not in use.
