5.2 Rear Panel
5.2.1 Appearance

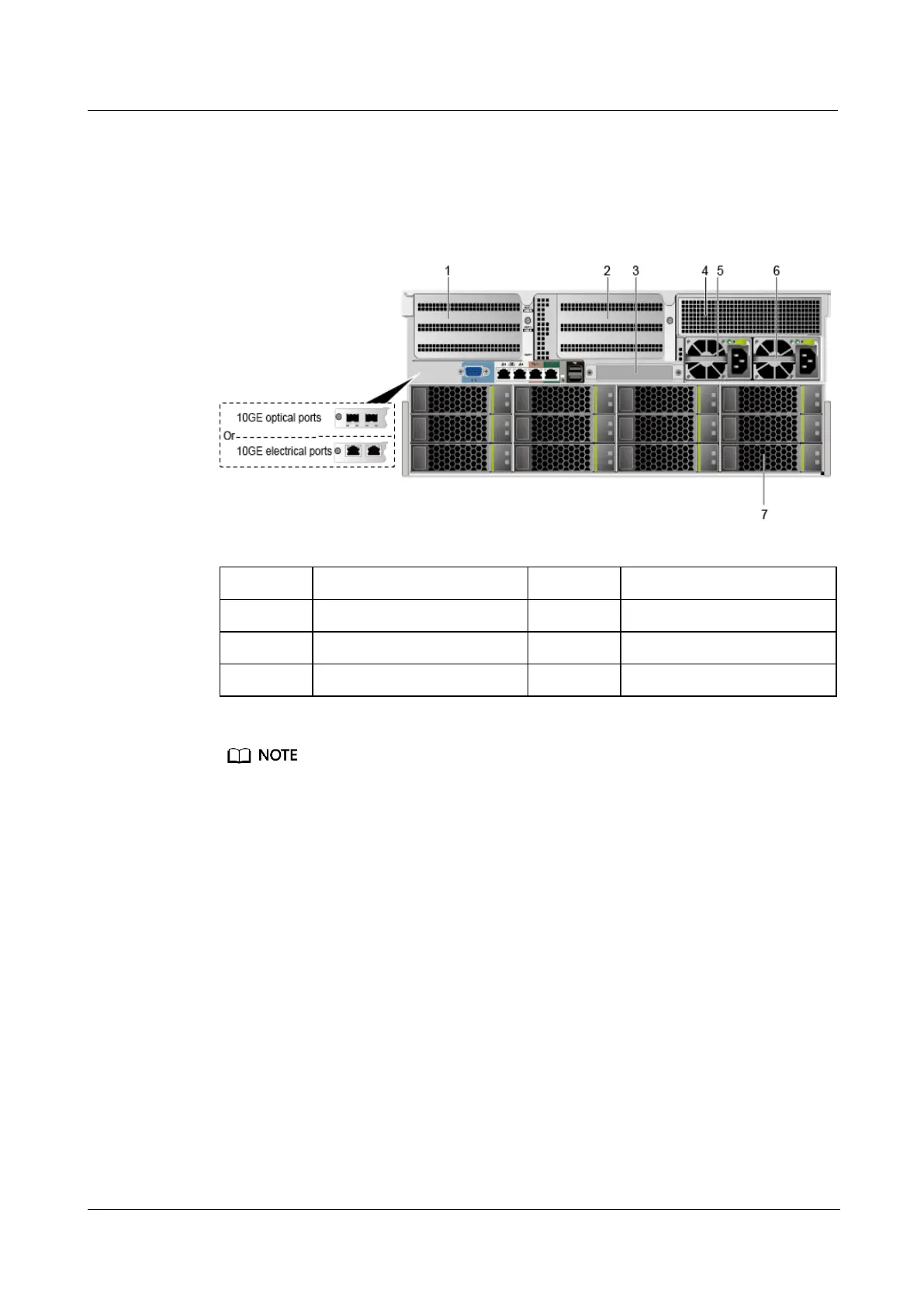

Figure 5-4 Rear view
1
I/O module 1
2
I/O module 2
3
(Optional) FlexIO card
4
I/O module 3
5
PSU 1
6
PSU 2
7
Rear drives
-
-
⚫
I/O modules 1, 2 and 3 can be configured with drive modules or PCIe riser modules.
⚫
The preceding figure is for reference only.
