Fusion FusionServer 5288 V5 - RAID Controller Card

FusionServer 5288 V5 Server
Technical White Paper
5 Hardware Description
Issue 07 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
39
Table 5-13 NVMe drive indicators (VMD disabled)
Activity Indicator
(Green)
Fault Indicator
(Yellow)
Description
Off
Off
The NVMe drive cannot be detected.
Steady on
Off
The NVMe drive is working properly.
Blinking at 2 Hz
Off
Data is being read from or written to the
NVMe drive.
Off
Blinking at 2 Hz
The NVMe drive is being located or
hot-swapped.
Off
Blinking at 0.5 Hz
The hot removal process is complete,
and the NVMe drive is removable.
Steady on/Off
Steady on
The NVMe drive is faulty.
M.2 FRU Indicators

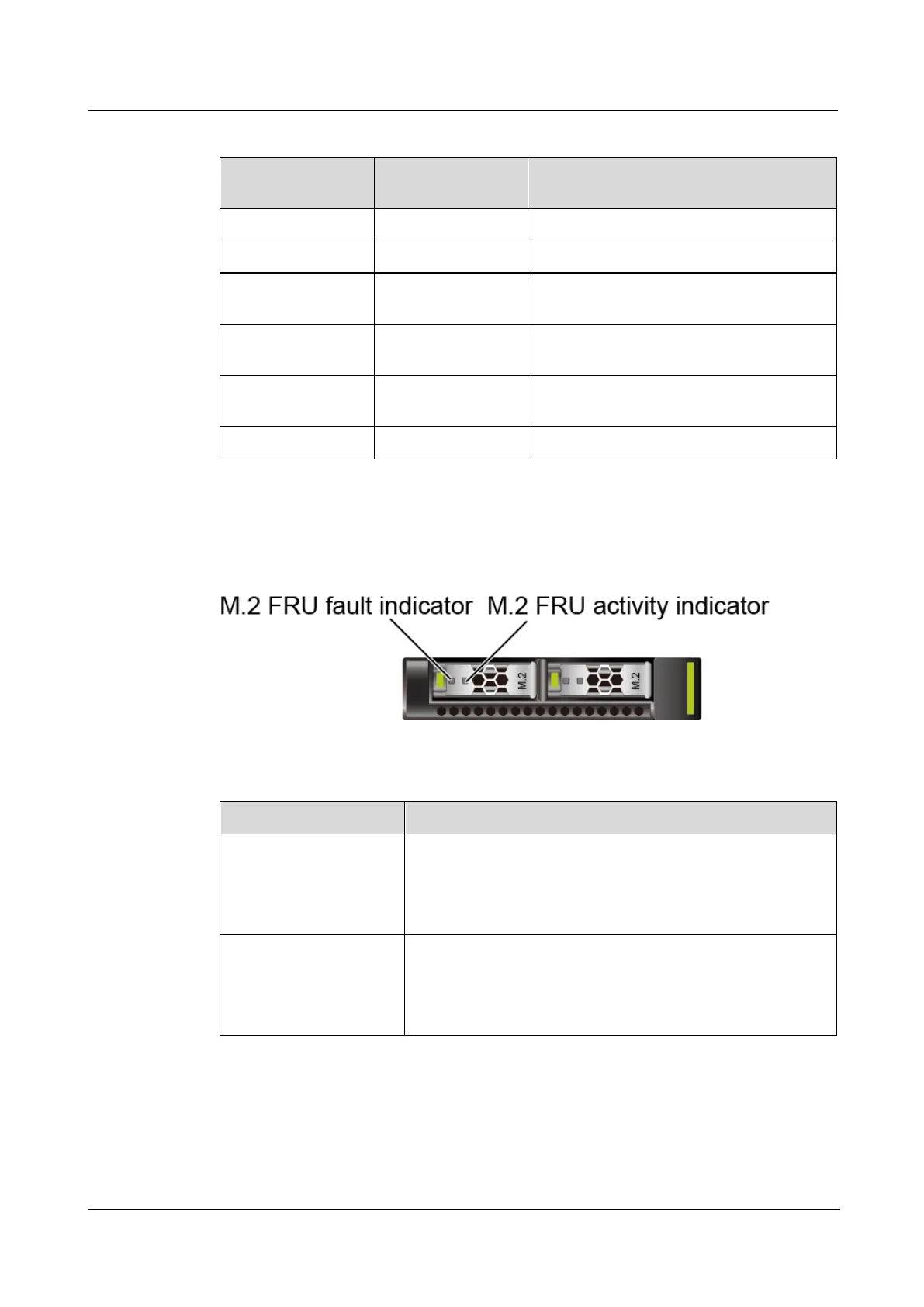

Figure 5-21 M.2 FRU indicators
Table 5-14 M.2 FRU indicator description
Indicator
Description
M.2 FRU fault indicator
⚫
Off: The M.2 FRU is running properly.
⚫
Blinking yellow: The M.2 FRU is being located, or
RAID is being rebuilt.
⚫
Steady yellow: The M.2 FRU is faulty or not detected.
M.2 FRU activity
indicator
⚫
Off: The M.2 FRU is not in position or is faulty.
⚫
Blinking green or light green: Data is being read,
written, or synchronized.
⚫
Steady green or light green: The M.2 FRU is inactive.
5.5.4 RAID Controller Card
The RAID controller card supports RAID configuration, RAID level migration, and
drive roaming.
