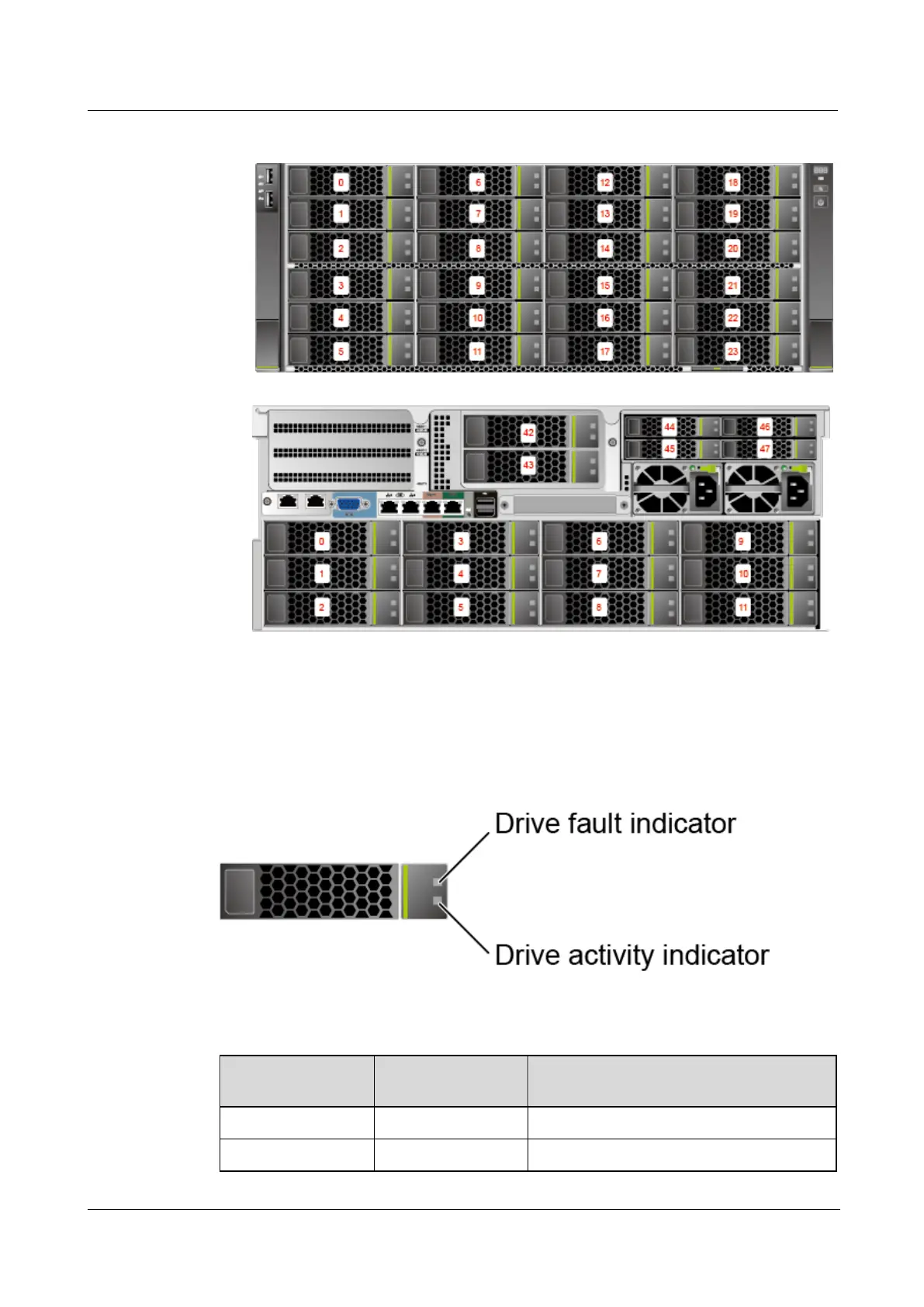

Figure 5-18 Drive numbering
5.5.3 Drive Indicators
SAS/SATA Drive Indicators
Figure 5-19 SAS/SATA drive indicators
Table 5-11 Description of SAS/SATA drive indicators
Activity Indicator
(Green)
Fault Indicator
(Yellow)
Description
Off
Off
The drive is not in position.
Steady on
Off
The drive is detected.
