FusionServer 5288 V5 Server
Technical White Paper
5 Hardware Description
Issue 07 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
38
Activity Indicator
(Green)
Fault Indicator
(Yellow)
Description
Blinking at 4 Hz
Off
Data is being read or written normally, or
data on the primary drive is being rebuilt.
Steady on
Blinking at 1 Hz
The drive is being located.
Blinking at 1 Hz
Blinking at 1 Hz
Data on the secondary drive is being
rebuilt.
Off
Steady on
A member drive in the RAID array is
removed.
Steady on
Steady on
The drive is faulty.
NVMe Drive Indicators

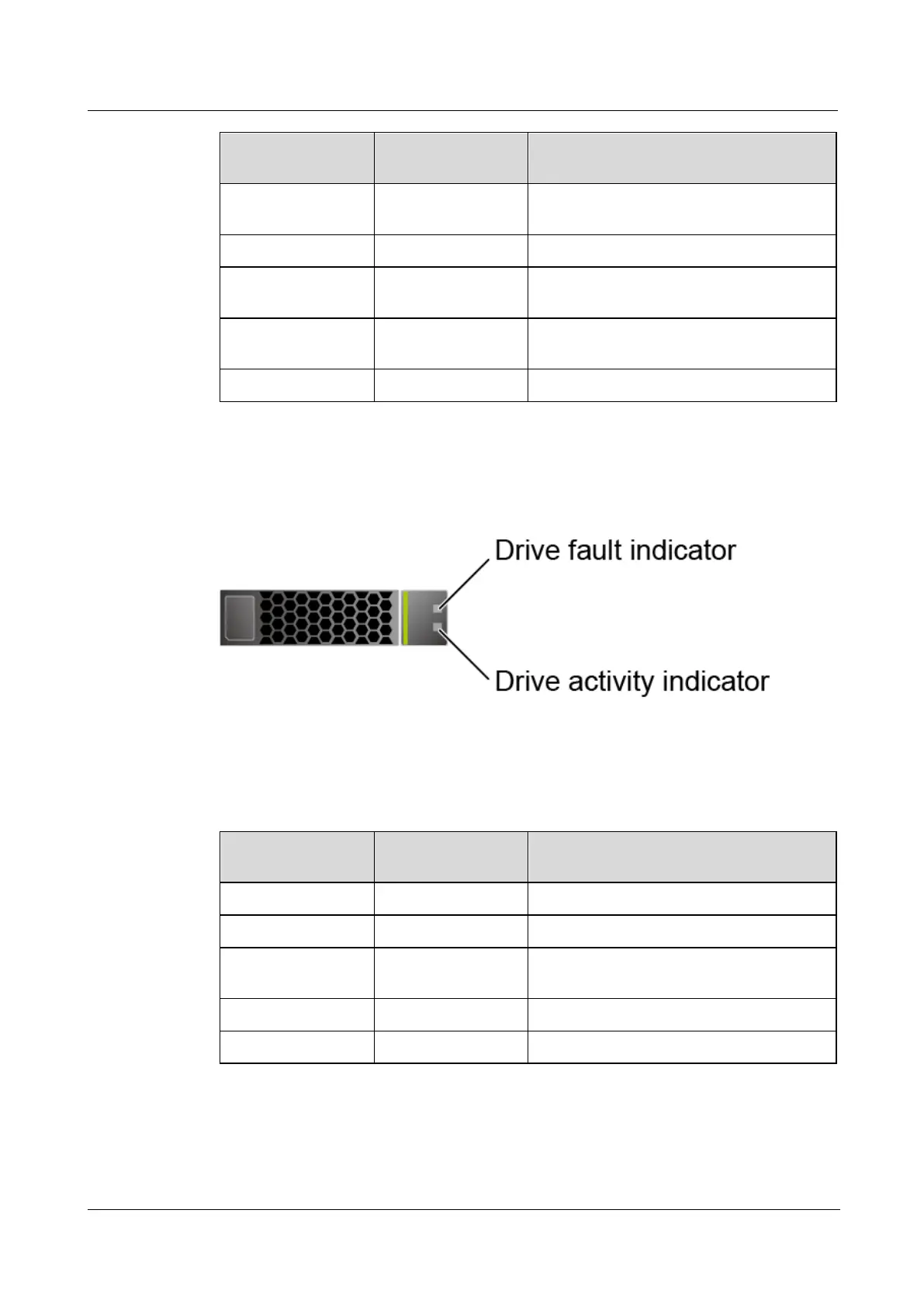

Figure 5-20 NVMe drive indicators
⚫
If the VMD function is enabled and the latest VMD driver is installed, the NVMe
drives support surprise hot swap.
Table 5-12 NVMe drive indicators (VMD enabled)
Activity Indicator
(Green)
Fault Indicator
(Yellow)
Description
Off
Off
The NVMe drive cannot be detected.
Steady on
Off
The NVMe drive is working properly.
Blinking at 2 Hz
Off
Data is being read from or written to the
NVMe SSD.
Off
Blinking at 2 Hz
The NVMe drive is being located.
Steady on/Off
Steady on
The NVMe drive is faulty.
⚫
If the VMD function is disabled, NVMe drives support only orderly hot swap.
