5.4 Memory
5.4.1 DDR4 Memory
5.4.1.1 Memory Identifier
You can determine the memory module properties based on the label attached to the
memory module.

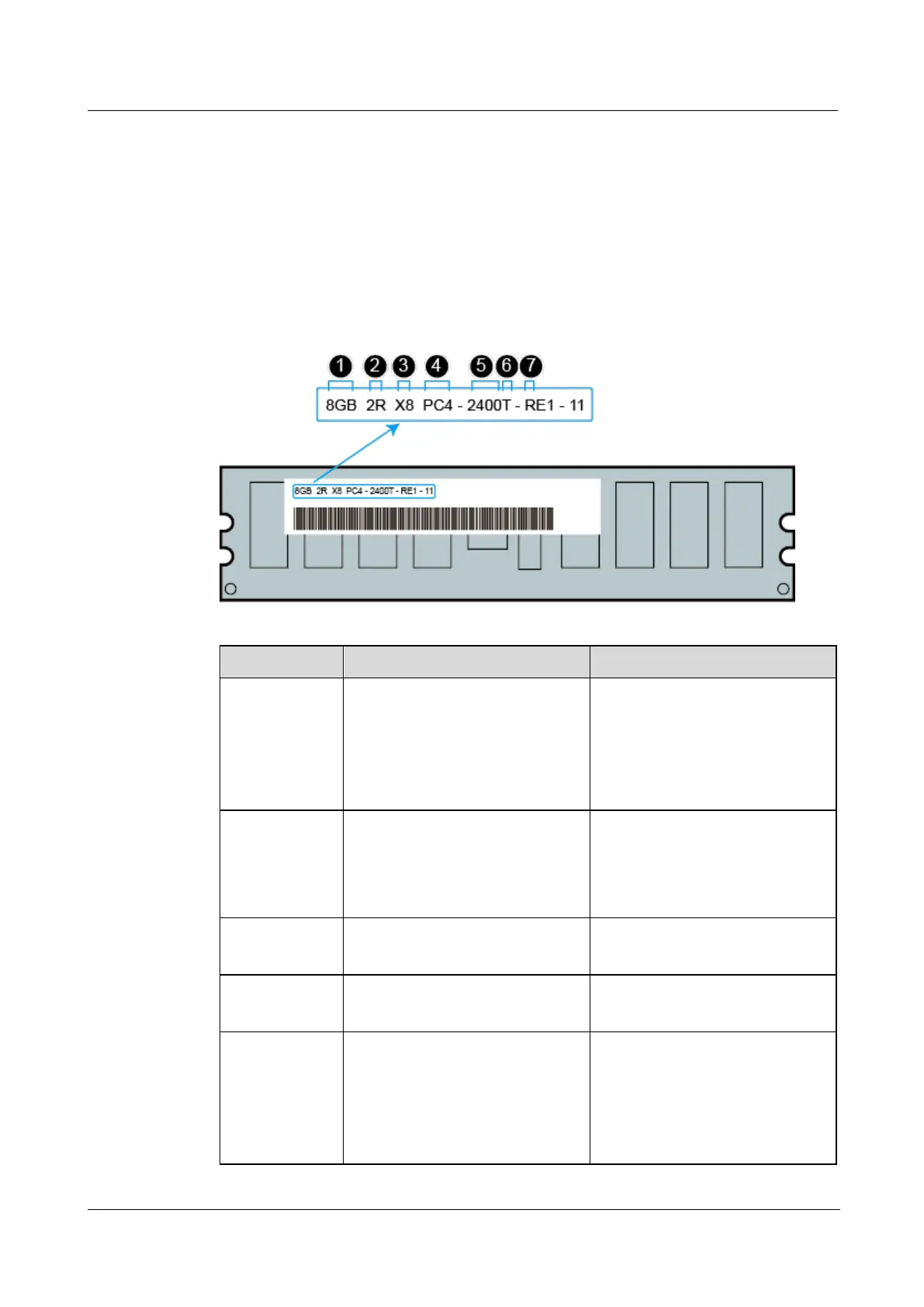

Figure 5-8 Memory identifier
Callout
Description
Definition
1
Capacity of the memory module
⚫
8 GB
⚫
16 GB
⚫
32 GB
⚫
64 GB
⚫
128 GB
2
Number of ranks of the memory
module
⚫
1R: single-rank
⚫
2R: dual-rank
⚫
4R: quad-rank
⚫
8R: octal-rank
3
Data width on the DRAM
⚫
X4: 4-bit
⚫
X8: 8-bit
4
Type of the memory interface
⚫
PC3: DDR3
⚫
PC4: DDR4
5
Maximum memory speed
⚫
2133 MT/S
⚫
2400 MT/S
⚫
2666 MT/S
⚫
2933 MT/S
⚫
3200 MT/S
