If six P4 GPU cards are configured:
⚫
The GPU cards fit into slots 1 to 6.
⚫
The processor power must be lower than 130 W.
⚫
The GPU cards support the highest temperature of 30°C in stack installation and 35°C in
non-stack installation.
PCIe Riser Modules
⚫
PCIe riser module 1 (universal)
− Provides PCIe slots 1 and 3 when installed in I/O module 1.
− Provides PCIe slots 4 and 6 when installed in I/O module 2.

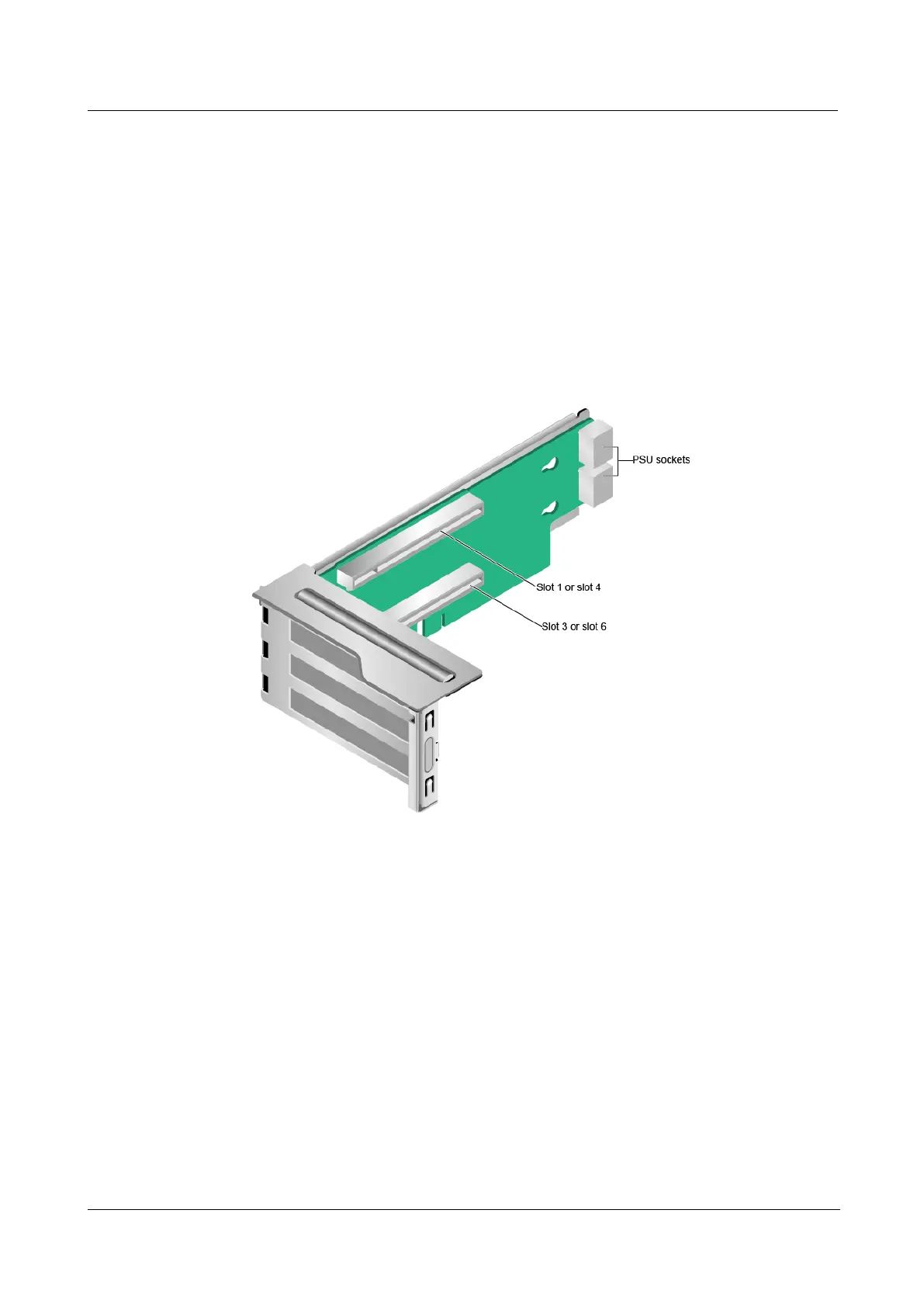

Figure 5-31 PCIe riser module 1
⚫
PCIe riser module 2 (universal)
− Provides PCIe slots 1, 2, and 3 when installed in I/O module 1.
− Provides PCIe slots 4, 5, and 6 when installed in I/O module 2.
