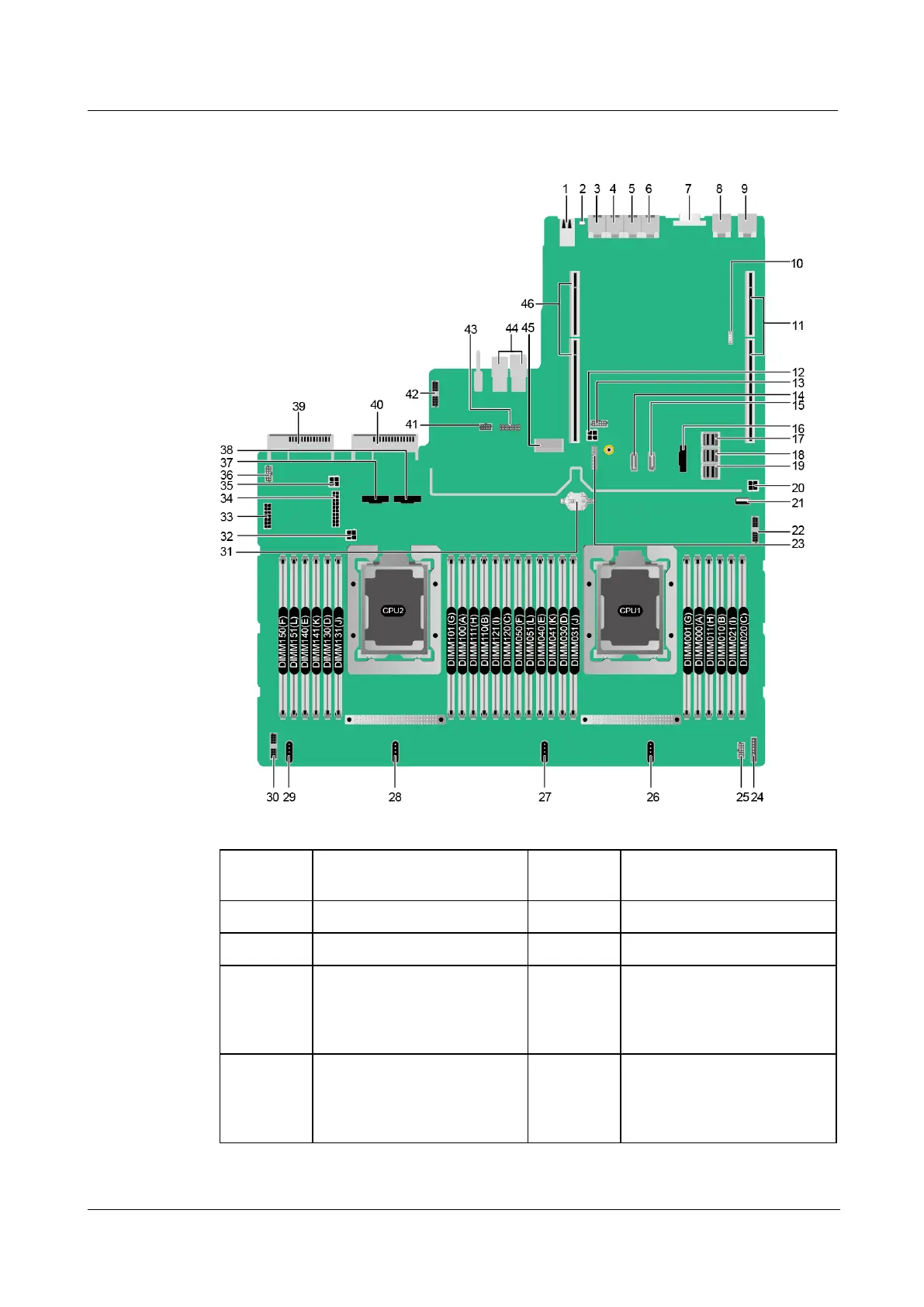

Figure 5-40 5288 V5 mainboard (BOM: 03024AFQ, 03026NEA, 03024CXS, 03029JRP,
0302021706, 0302Y076, 06410432, 06410436, 06410592)
1
USB 3.0 port (USB 3.0
CONN/J169)
2
UID indicator (D6020)
3
Serial port
4
Management network port
5
GE electrical port
6
GE electrical port
7
VGA connector (VGA
CONN/J112)
8
10GE optical port (10GE
PORT2/J132) or 10GE
electrical port (10GE
PORT2/J101)
a
9
10GE optical port (10GE
PORT1/J131) or 10GE
electrical port (10GE
PORT1/J100)
a
10
VROC key port (J130)
b
