Transmitter LiPo Battery LT2F2000B

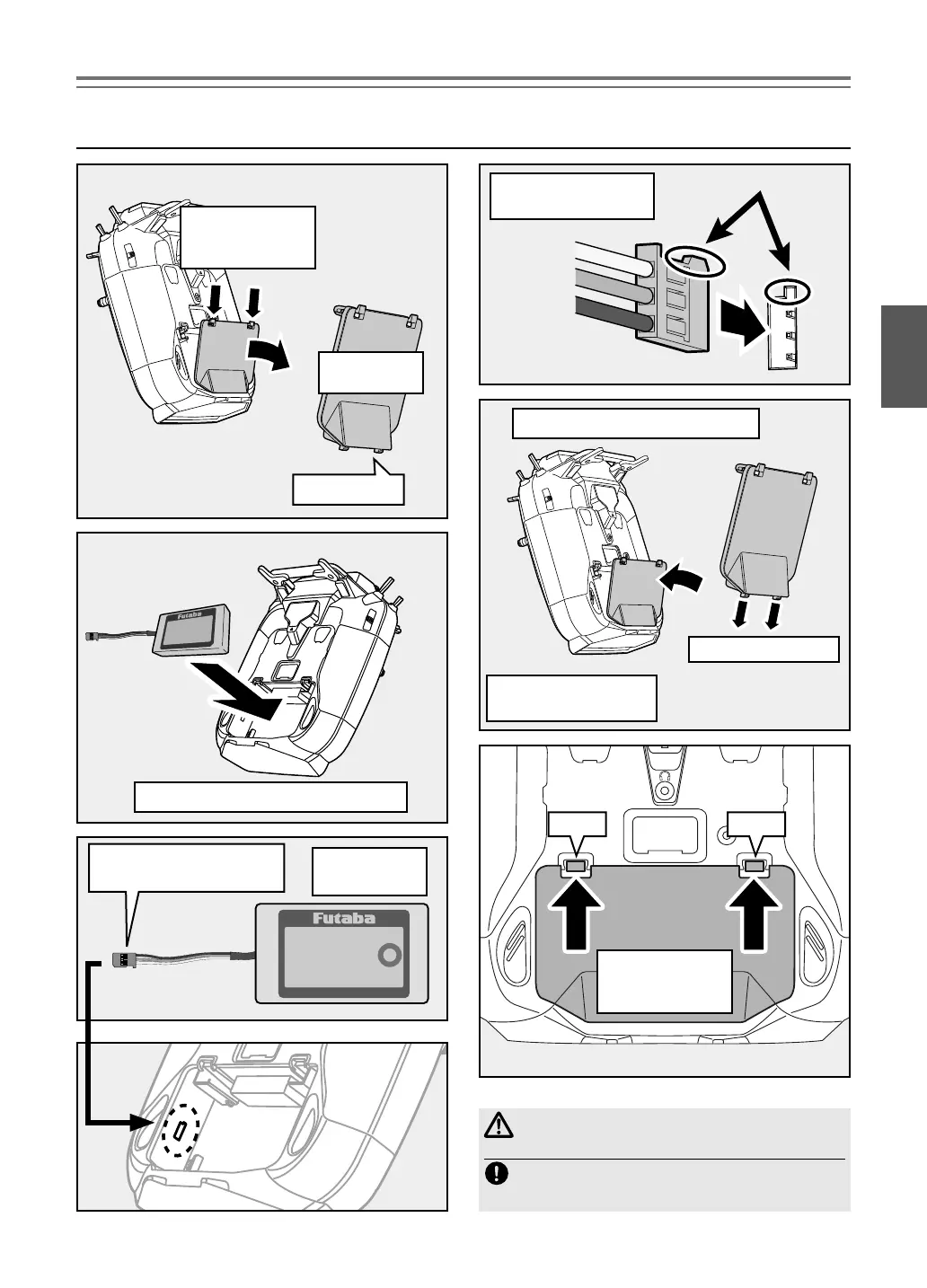

Installing/removing the LT2F2000B
CAUTION
T16IZ only supports LiPo LT2F2000B.
LiFe and NiMH batteries cannot be used.
Install the battery into the transmitter
Close the battery cover completely
Be careful not to pinch
the wiring
Connect the battery
connector
Press the tab to
open the battery
cover.
First insert two tabs
Remove the
battery cover
Battery cover
This 2P connector connects
to the transmitter.
LT2F2000B
LiPo Battery
Press the tab to
close the battery
cover.
Click ! Click !
