FUTABA T16IZ Short Manual

31

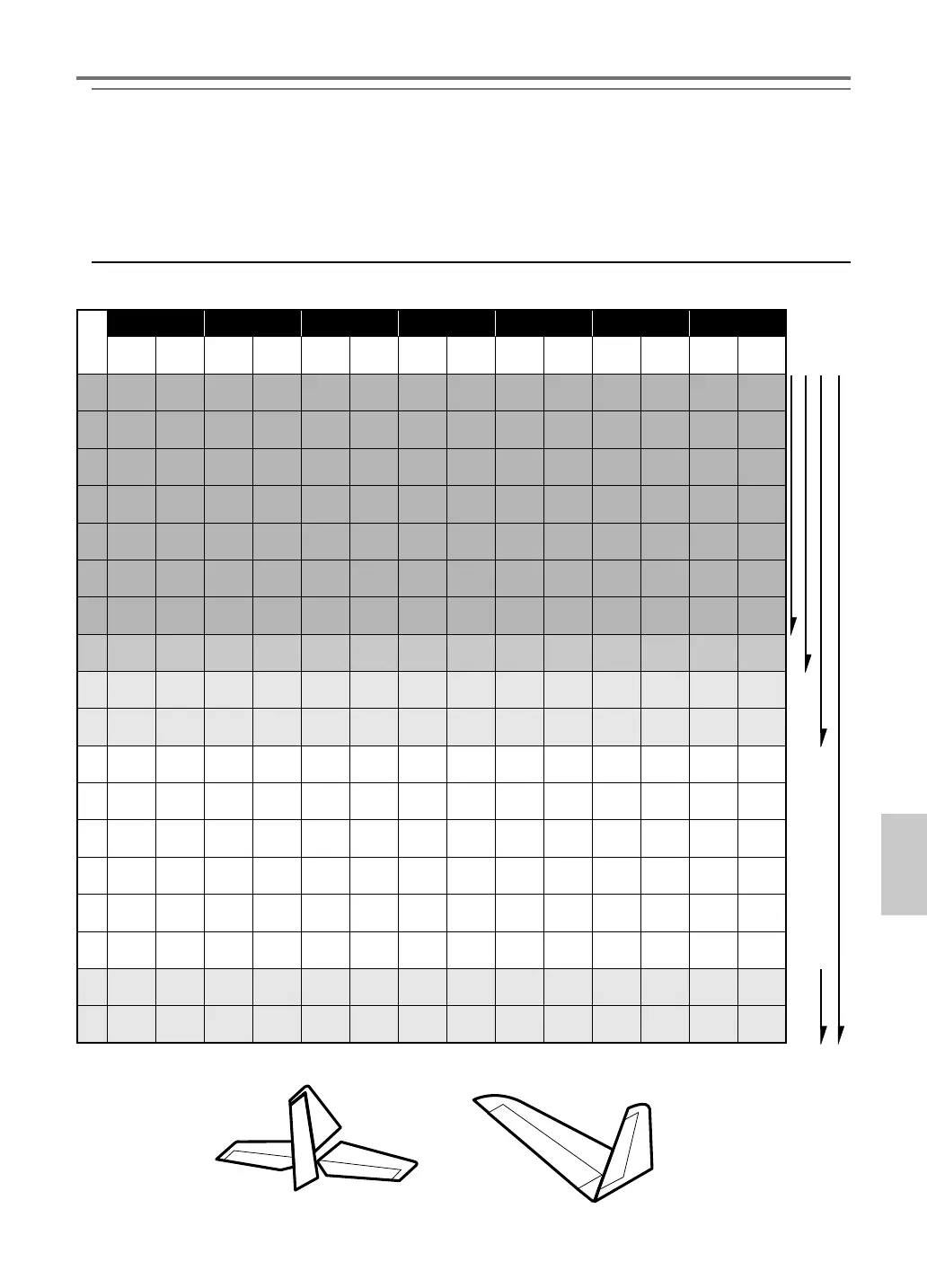

Servo Connection by Model Type
The T16IZ transmitter channels are automatically assigned for optimal combination according to the type
selected with the Model type function of the Linkage menu. The channel assignment (initial setting) for
each model type is shown below. Connect the receiver and servos to match the type used.
*The set channels can be checked at the Function screen of the Linkage menu. The channel assignments can also be changed.
For more information, read the description of the Function menu.
Airplane/glider
●Normal tail and V tail
V-tail
Normal
The output
CH of each
system
RX
CH
1AIL 2AIL 2AIL+1FLAP 2AIL+2FLAP 2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP
Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider
1
Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron
2
Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator
3
Throttle Motor Throttle Motor Throttle Motor Throttle Motor Throttle Rudder Throttle Rudder Throttle Rudder
4
Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Aileron2 Rudder Aileron2 Rudder Aileron2
5
Gear AUX6 Gear AUX6 Gear AUX6 Aileron2 Aileron2 Gear Flap Gear Aileron3 Gear Aileron3
6
Airbrake Airbrake Aileron2 Aileron2 Aileron2 Aileron2 Flap Flap Aileron2 Flap2 Aileron2 Aileron4 Aileron2 Aileron4
7
AUX5 AUX5 AUX5 AUX5 Flap Flap Flap2 Flap2 Flap Flap3 Aileron3 Flap Aileron3 Flap
8
AUX4 AUX4 AUX4 AUX4 AUX5 AUX5 Gear AUX6 Flap2 Flap4 Aileron4 Flap2 Aileron4 Flap2
9
AUX3 AUX3 AUX3 AUX3 AUX4 AUX4 AUX5 AUX5 Flap3 Motor Flap Motor Flap Flap3
10
AUX2 AUX2 AUX2 AUX2 AUX3 AUX3 AUX4 AUX4 Flap4 AUX6 Flap2 AUX6 Flap2 Flap4
11
AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX3 AUX3 AUX5 AUX5 AUX5 AUX5 Flap3 Motor
12
AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX4 AUX4 AUX4 AUX4 Flap4 AUX6
13
AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX3 AUX3 AUX3 AUX3 AUX5 AUX5
14
AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2 AUX2 AUX4 AUX4
15
AUX1 AUX1 AUX1 Buttery AUX1 Buttery AUX1 Buttery AUX1 Buttery AUX1 Buttery AUX3 Buttery
16
AUX1 AUX1 Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber
DG1
SW SW SW SW SW SW SW SW SW SW SW SW SW SW
DG2
SW SW SW SW SW SW SW SW SW SW SW SW SW SW
FASST 7CH S-FHSS FASSTest 12CH FASSTest 18CH FASST MULT T-FHSS
*FASST MULTI/FASST 7CH cannot be selected for Europe.

FUTABA T16IZ Specifications

General

Channels	16
Frequency	2.4GHz
Telemetry	Yes
Voice Alerts	Yes
SD Card Slot	Yes
USB Port	Yes
Trainer Port	Yes
Modulation	T-FHSS, S-FHSS
Display	4.3-inch color touchscreen
Battery	7.4V 2000mAh
Model Memory	30 models
