FUTABA T16IZ Short Manual

24

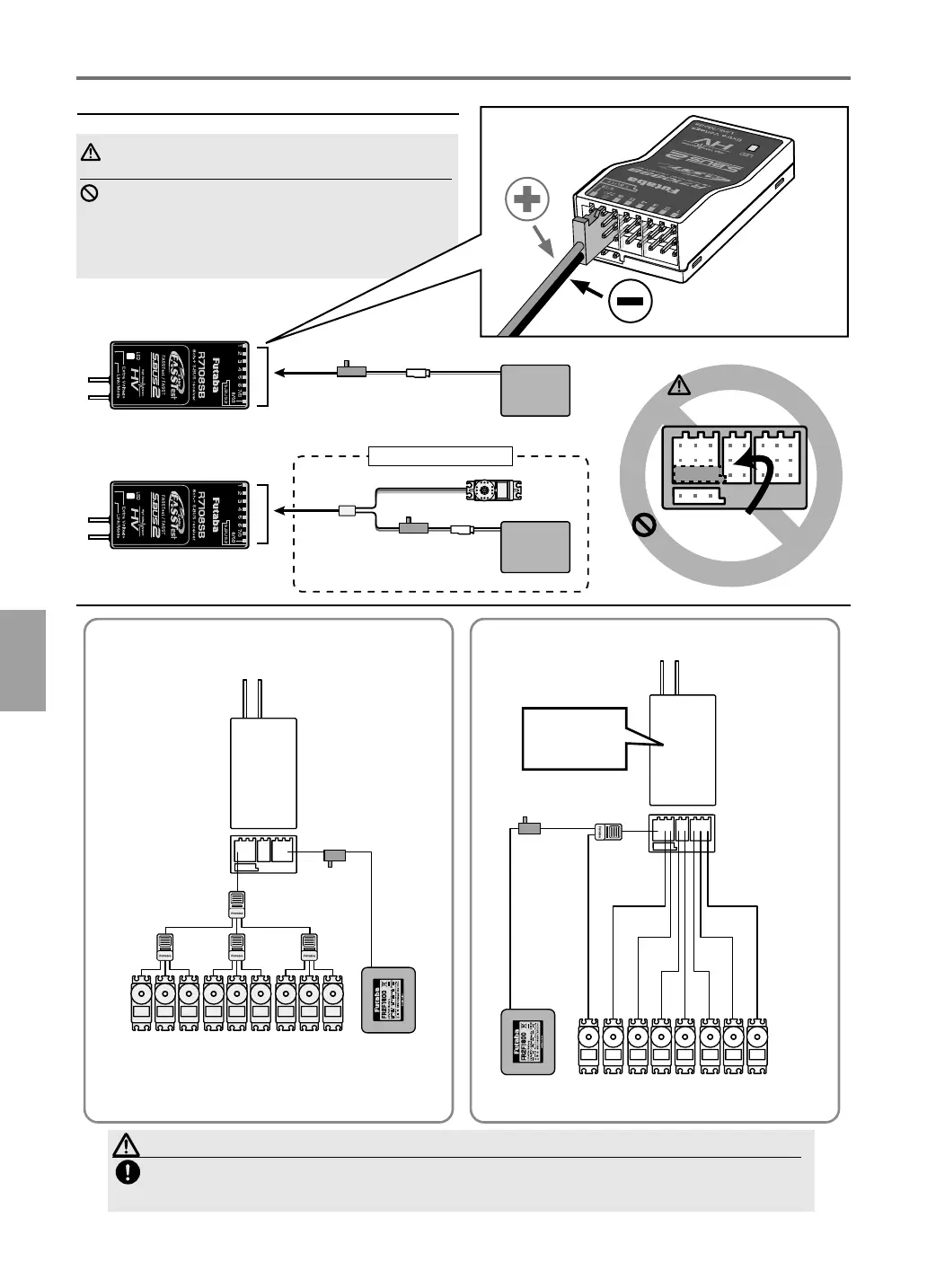

Connection of a receiver battery
Connection example
Battery
3.7 ～ 7.4 V
Switch
Servo
Y-harness
When all ports are used.
Battery
3.7 ～ 7.4 V
Switch
A battery is connectable
also with which port.
R7108SB
Channel 1-8
Conventional servos
Battery
PWM
Battery
HUB
HUB
S.BUS servos
Channel 1 -18
Switch
Switch
to 8/SB port
S.BUS
R7108SB
CH Mode
→Mode A
WARNING
Please make sure that you use a battery
that can deliver enough capacity for the
number and kind of servos used. Dry
batteries cannot be used.
Power supply
Please make sure that you use a battery that can deliver enough capacity for
the number and kind of servos used. Alkaline batteries cannot be used.
WARNING
Receiver
Do not insert either a switch
or battery in this manner.
DANGER

FUTABA T16IZ Specifications

General

Channels	16
Frequency	2.4GHz
Telemetry	Yes
Voice Alerts	Yes
SD Card Slot	Yes
USB Port	Yes
Trainer Port	Yes
Modulation	T-FHSS, S-FHSS
Display	4.3-inch color touchscreen
Battery	7.4V 2000mAh
Model Memory	30 models
