FutureLogic PSA-66-ST2 - Cleaning the Print Head

Operators and Technicians Manual
© 2002 – 2007 FutureLogic, Incorporated. All Rights Reserved. MNL Page 7 of 52 12/07/2007
MNL-000003 REV.N

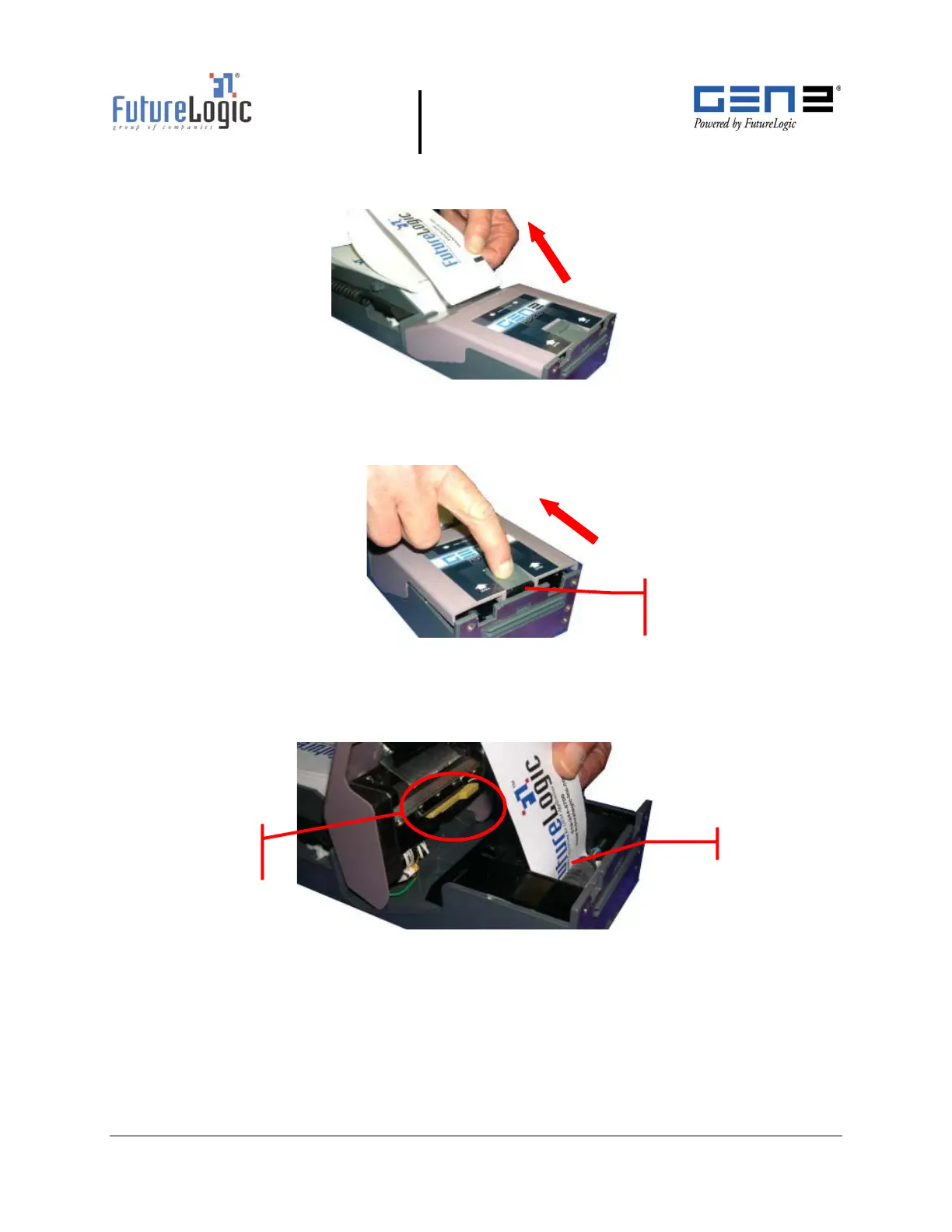

To clear a paper jam:
1. Remove the paper from the printer.
Figure 2-5 Remove the Paper
2. Open the lid by pressing the Lid Release Lever.
The spring-loaded lid opens, exposing the paper path.
Figure 2-6 Open the Lid
3. Remove the jammed ticket.
If necessary, access the paper path through the print mechanism by opening the
Mechanism Release Lever.
Figure 2-7 Clear the Paper Jam
4. Once you clear the jam, reverse these steps to return the printer to a ready state.
5. Load the paper.
Cleaning the Print Head
To clean the print head, use canned air to blow out the paper particles. Then use a lint-free
cloth or cotton swab with isopropyl alcohol to clean the print head.
Mechanism
Release Leve
r
Voucher Path
Lid Release
Lever
