GEN2 RS232 Adapter Cable – 12 Pin to 14 Pin

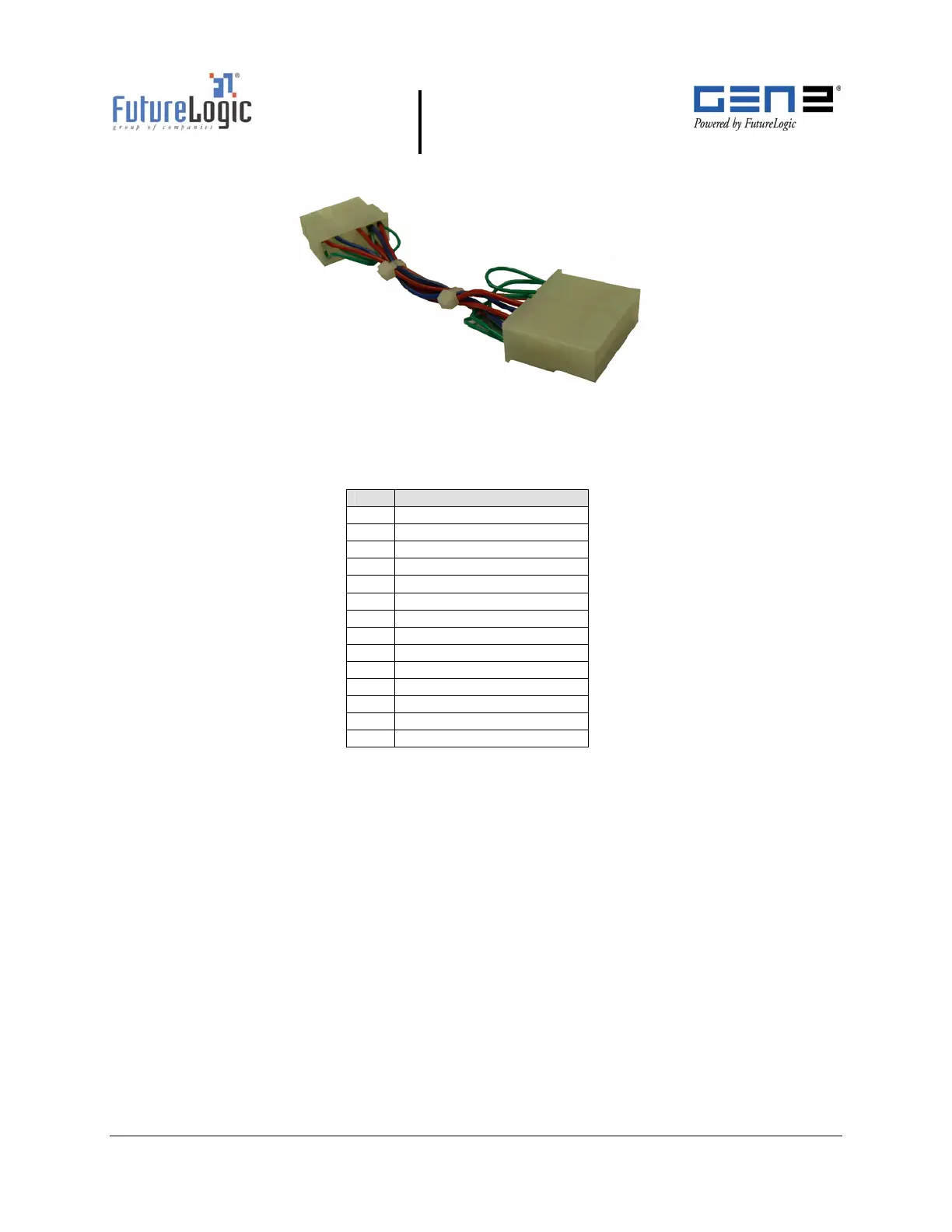

Figure 4-8 RS232 Adapter Cable
Table 4-14 RS232 Adapter Cable Pin-outs
Pin Function
1 MRSET
2 No connect
3 No connect
4 No connect
5 GND
6 +24VDC
7 GND
8 +24VDC
9 +24VDC
10 GND
11 RX1
12 TX1
13 DTR
14 RTS
RS232 Adapter Cable P/N 150-00043
