Operators and Technicians Manual
© 2002 – 2007 FutureLogic, Incorporated. All Rights Reserved. MNL Page 18 of 52 12/07/2007
MNL-000003 REV.N
GEN2 RS232 Interface Cable – 14 Pin Coiled Cable
Table 4-12 Auxiliary COMM Port Pin-out
Table 4-13 RS232 Power/COMM Port 14 Pin-out
Pin Function
1 MRESET
2 Netplex TXD
3 +12 VDC (RS232 optional)
4 Netplex RXD
5 GND
6 +24 VDC
7 GND
8 +24 VDC
9 Modulated +24VDC
10 GND
11 RS232 RXD
12 RS232 TXD
13 DTR
14 RTS
RS232 14 Pin Coiled Cable P/N: 150-00047-100

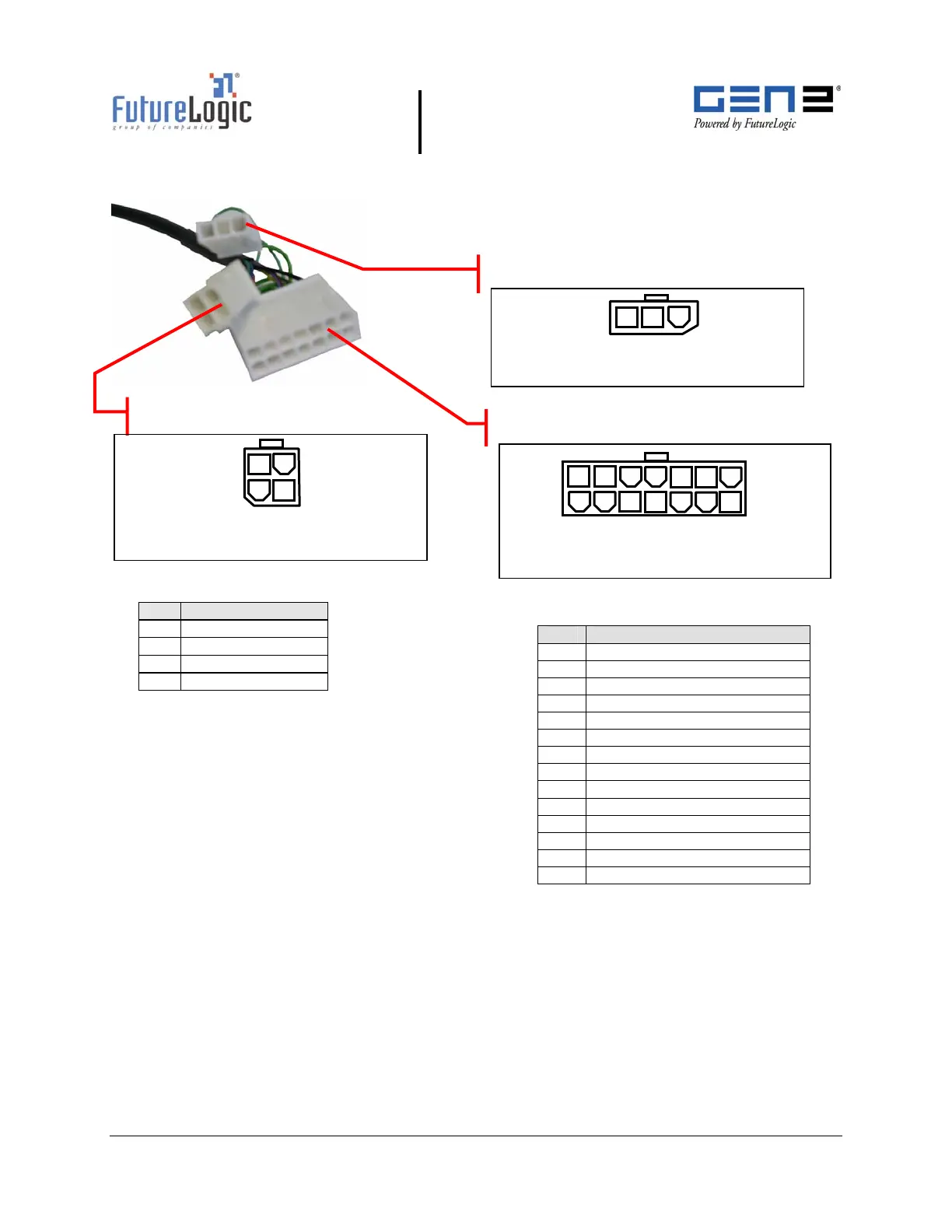

Figure 4-7 RS232 Interface Cable, 14 Pin Coiled
Bezel LED Control Port
Auxiliary COMM Port
Connector: Molex Mini-Fit Jr. 39-01-3149
Mate: Molex Mini-Fit Jr. 39-01-2140
Connector: Molex Mini-Fit Jr. 39-01-3049
Mate: Molex Mini-Fit Jr. 39-01-3042
Power/COMM Port – 14 Pin
1
14
7
8
Connector: Molex Mini-Fit Jr. 39-01-4032
Mate: Molex Mini-Fit Jr. 39-01-4030
1 2
3
1
3
2
4
Pin Function
1 GND
2 RX2
3 TX2
4 no connect
