Operators and Technicians Manual
© 2002 – 2007 FutureLogic, Incorporated. All Rights Reserved. MNL Page 23 of 52 12/07/2007
MNL-000003 REV.N
GEN2 RS232 Dip Switches
The printer has a set of six dip switches accessible through a slot on the top of the stationary
module. The dip switches are used to select the communications protocol. The switches
must
be set according to Table 4-20.

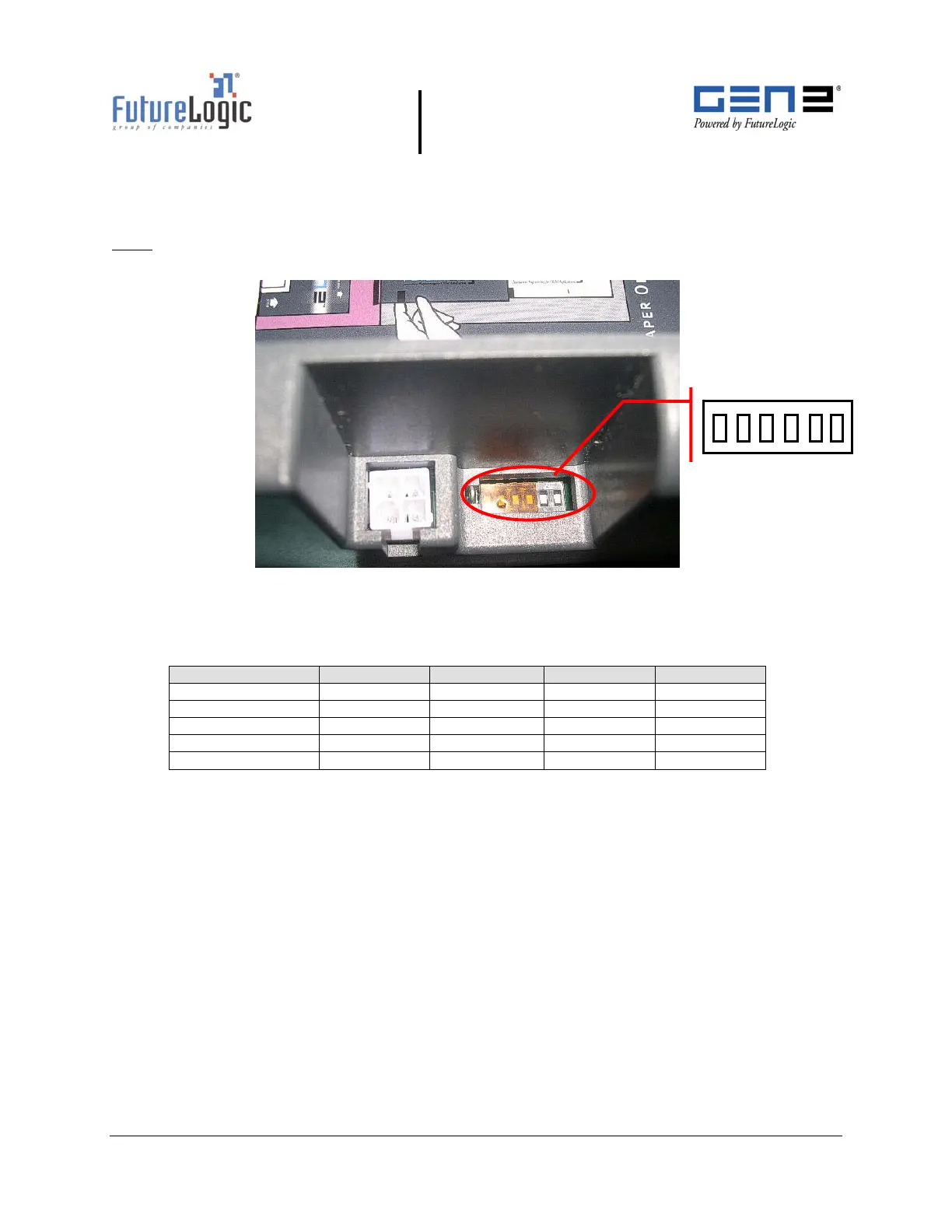

Figure 4-12 Dip Switches – Top View
Table 4-20 RS232 6 Position Dip Switch Settings
MODE SW1 (JMPR3) SW2 (JMPR2) SW3 (JMPR1) SW4 (JMPR0)
9600 ON ON X X
38400 OFF ON X X
57600 OFF ON ON X
XON/XOFF + RTS X X X OFF
RTS X X X ON
6
1
ON
